Engines

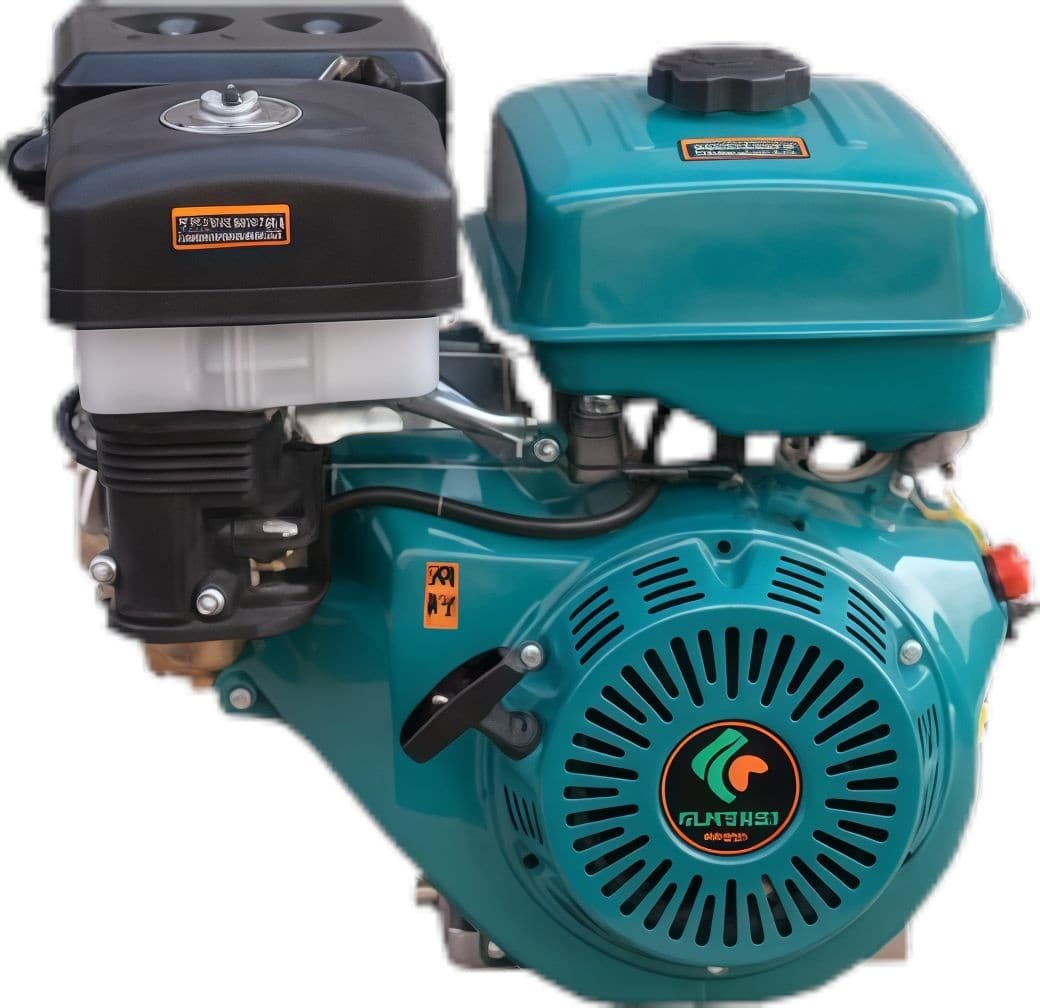

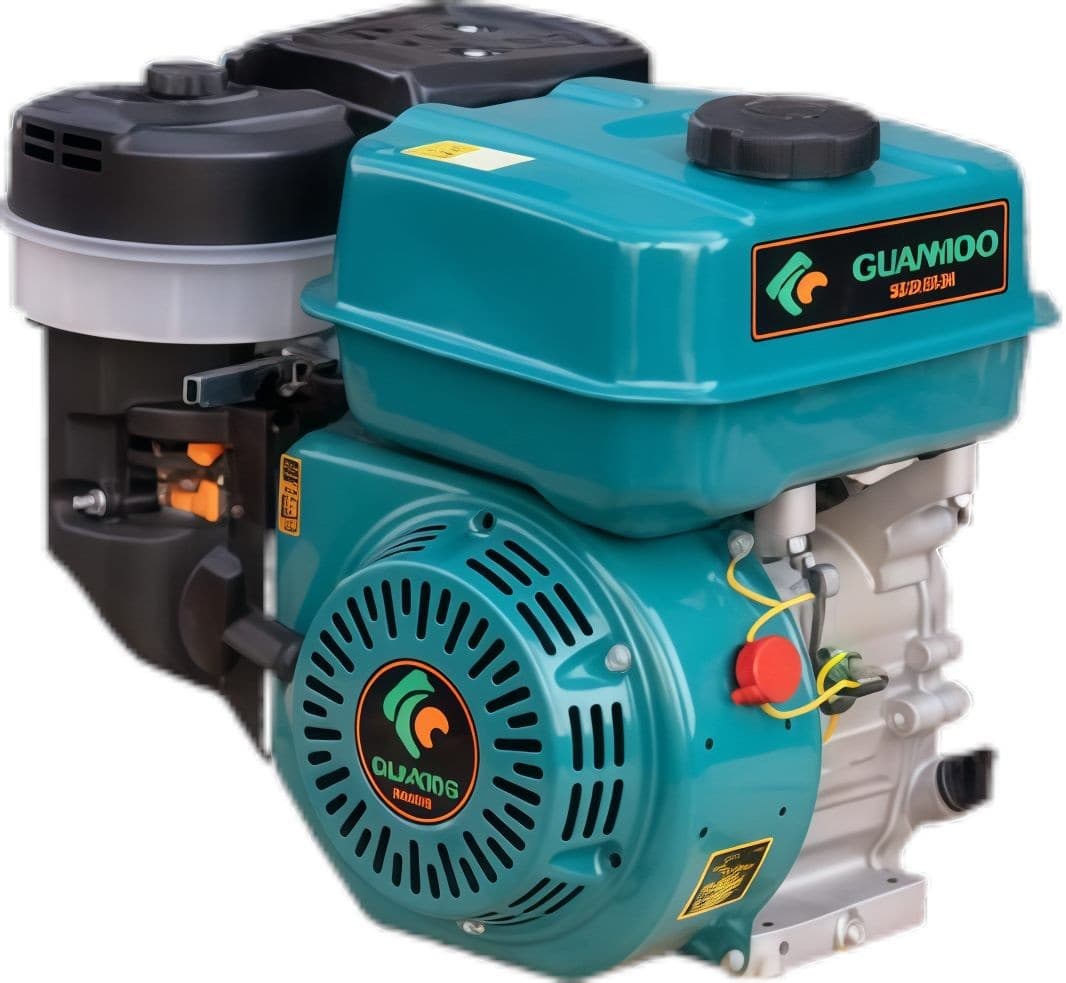

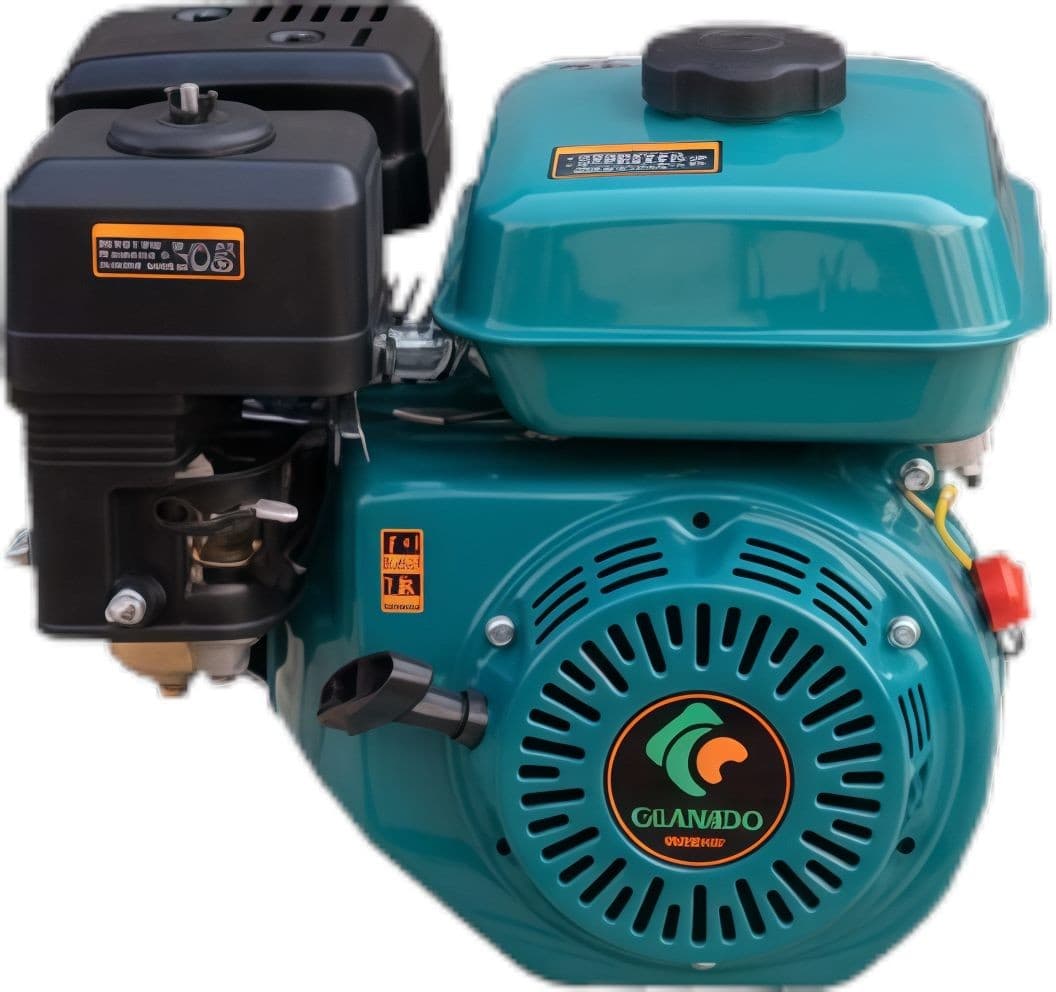

General-Purpose Gasoline Engine
General-purpose gasoline engine series with compact structure, fast starting and easy maintenance. Powers tillers, water pumps, generators, threshers, garden equipment and small construction machinery across diverse markets.
Main Technical Features
- Reinforced components designed to meet the high-intensity demands of construction machinery.
- Rich configurations to suit various end-use construction equipment such as trowels, road cutters and plate compactors.
- Applicable scope: widely used in small construction machinery, orchard management machinery, agricultural machinery, water pump sets and generator sets.
- Strengthen the design of components to meet the high-strength usage needs of construction machinery.
- Rich configuration to meet different construction machinery terminals.
Technical Parameters
| Model | GH152F/P | GH170F/P | GH177F/P | GH190F/P |
|---|---|---|---|---|
Type | Air-cooled, four-stroke, single-cylinder, overhead valve | - | - | - |
Cylinder diameter and stroke | 52*46 | 70*54 | 77*58 | 90*66 |
Displacement | 98 | 212 | 270 | 420 |
Rated power | 1.2 | 4.0 | 5.4 | 8.5 |
Max torque | 2.3/2500 | 12/2500 | 17.5/2500 | 25.5/2500 |
Output speed | 3600 | 3600 | 3600 | 3600 |
Tank volume | 2.5 | 3.6 | 6.5 | 6.5 |
Oil capacity | 0.35 | 0.6 | 1.1 | 1.1 |
Net weight | 8/9 | 15/16 | 24/26 | 29 |
Applications
Widely used in small construction machinery, rural management machinery, agricultural machinery, water pump units, generator sets, etc.
