Engines

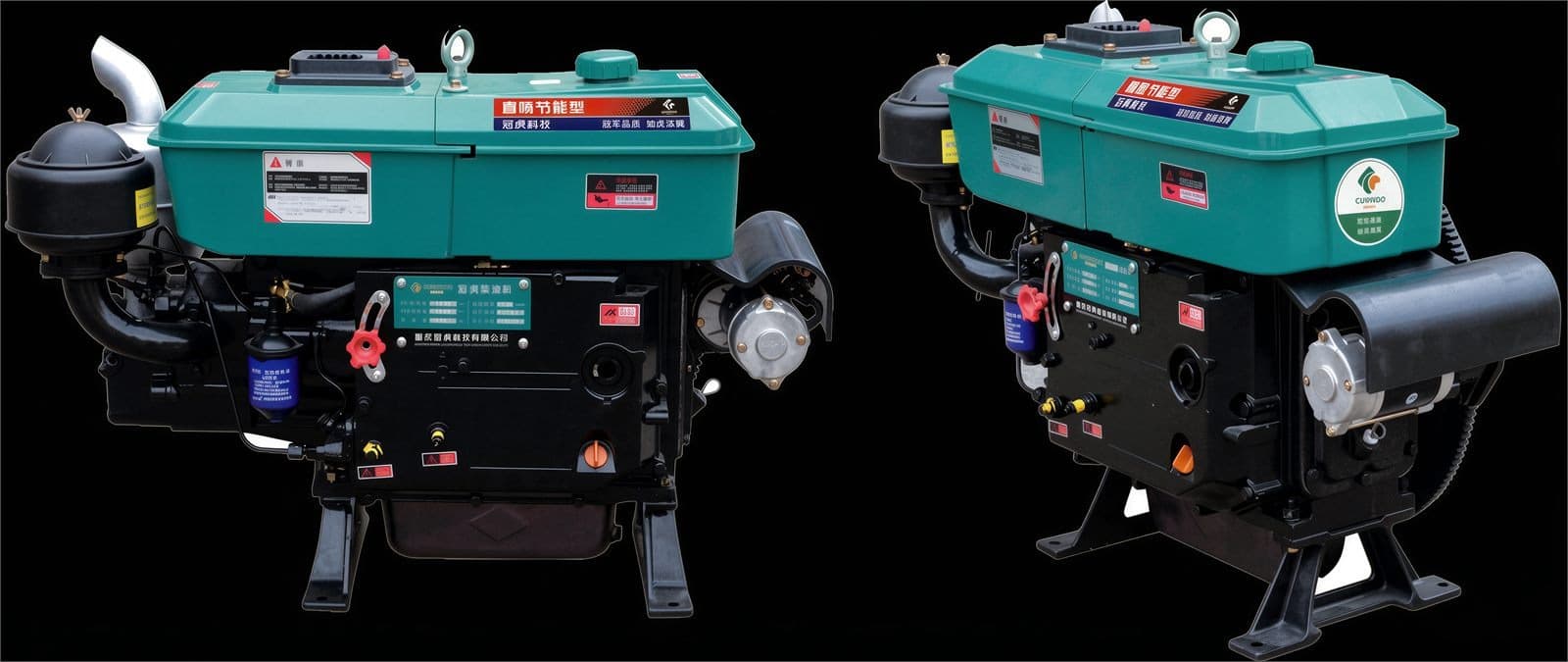

Single-Cylinder Water-Cooled Diesel Engine
Single-cylinder water-cooled diesel engine with evaporative water cooling. Low thermal load and excellent continuous-duty performance — widely used in tractors, farm vehicles, small vessels, generator sets and irrigation equipment.
Main Technical Features
- Independently developed high-strength alloy nylon water tank offers good seismic resistance and long service life.
- Cylinder liners, pistons and gears from famous domestic brands provide high machining accuracy and efficient wear resistance.
- Self-developed all-plastic air filter with high efficiency, low resistance and high filtration efficiency.
- Specially designed piston ring offers excellent sealing and wear resistance.
- Self-developed muffler assembly uses a domestically leading internal structure to reduce noise and exhaust resistance.
- Optimization and upgrading of key moving components significantly extend the service life of the whole engine.
- Applicable scope: widely used in walking tractors, small transport machinery, water pump sets, irrigation machinery, construction machinery, generator sets and other power-supporting fields.
- The independently developed high-strength alloy nylon water tank has good seismic resistance and long service life.
- Famous domestic brands of cylinder liners, pistons, and gears, with high machining accuracy and efficient wear resistance.
- The independently developed fully plastic air filter has high efficiency, low resistance, and high filtration efficiency.
- The specially designed piston ring has good sealing and wear resistance.
- The independently developed muffler component adopts the leading internal structure of domestic silencers, effectively reducing noise and reducing exhaust resistance.
- The optimization and upgrading of key moving components have significantly improved the service life of the entire machine.
Technical Parameters
| Model | ZR175 | ZR180(185)(M) | ZH192(M) | ZH195(M) | ZS1100(M) | ZS1105(M) |
|---|---|---|---|---|---|---|
Type | Single-cylinder, horizontal, evaporative water cooling, four-stroke | - | - | - | - | - |
Combustion chamber type | Direct injection | - | - | - | - | - |
Cylinder diameter | 75 | 80(85) | 92 | 95 | 100 | 105 |
Stroke | 80 | - | 95 | 95 | 115 | 115 |
Displacement | 0.353 | 0.402(0.454) | 0.598 | 0.67 | 0.903 | 0.996 |
Max power | 4.85/2600 | 5.67(6.25)/2600 | 8.5/2200 | 9.7/2200 | 12.1/2200 | 13.2/2200 |
Max torque | / | ≥23.4(25.7) | ≥35.8 | ≥35.8 | ≥58.8 | ≥64 |
Maximum torque point speed | / | ≤2080 | ≤1840 | ≤1840 | ≤1760 | ≤1760 |
Fuel consumption rate | ≤264 | ≤255 | ≤266 | ≤258 | ≤246.2 | ≤244.8 |
Idle speed | ≤1000 | ≤1000 | ≤950 | ≤950 | ≤800 | ≤800 |
Starting mode | Hand-crank start | - | Hand-crank / electric start | - | - | - |
Net Weight | 70 | 72 | 100 | 105 | 150 | 155 |
Overall dimension | 589*352*463 | 625*341*464 | 670*381*560 | 670*381*560 | 851*406*651 | 851*406*651 |
Applications
Widely used in walking tractors, small transportation machinery, water pump units, irrigation machinery, construction machinery, generator sets, small construction machinery and other power supporting fields.
