Energy Storage

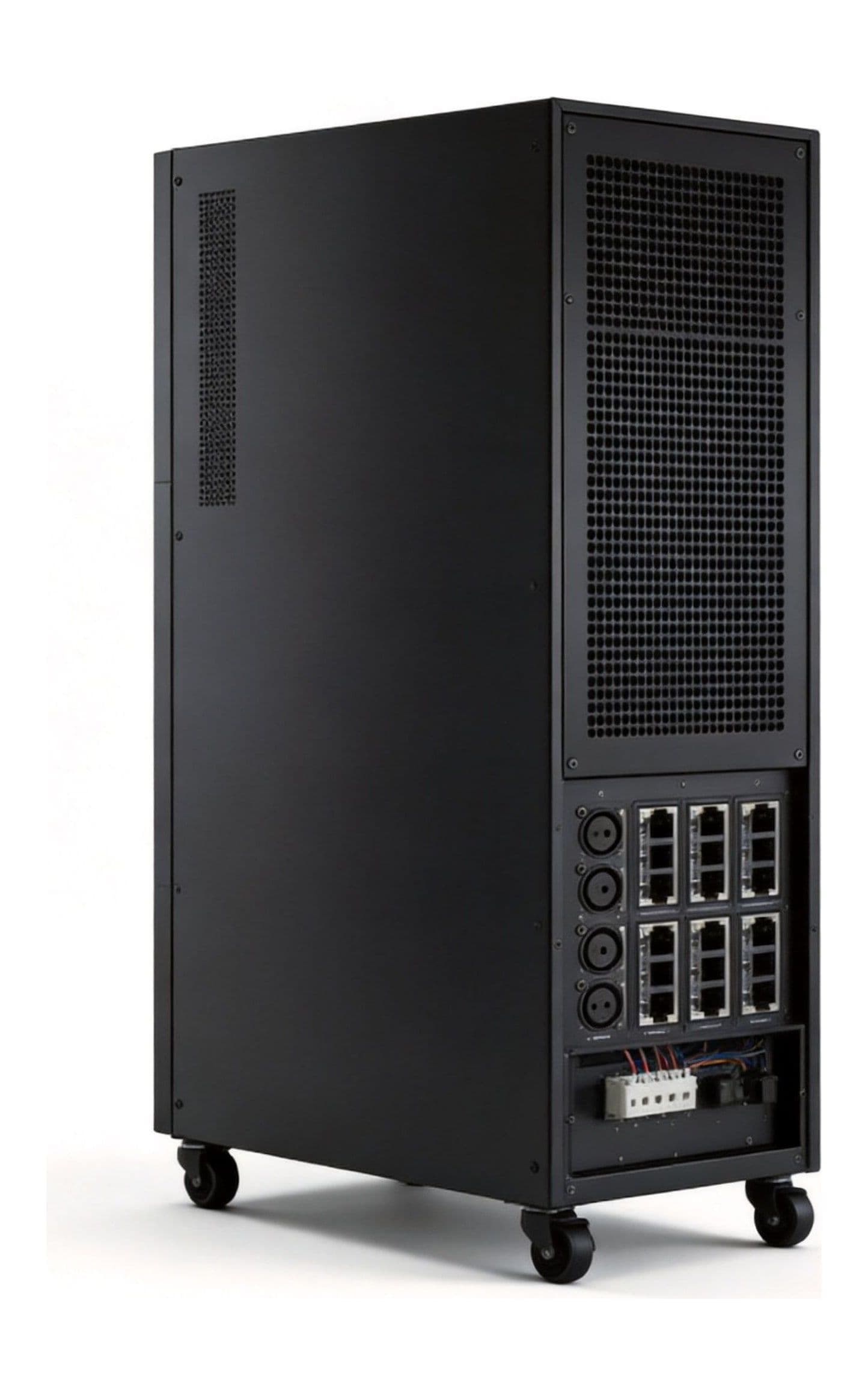

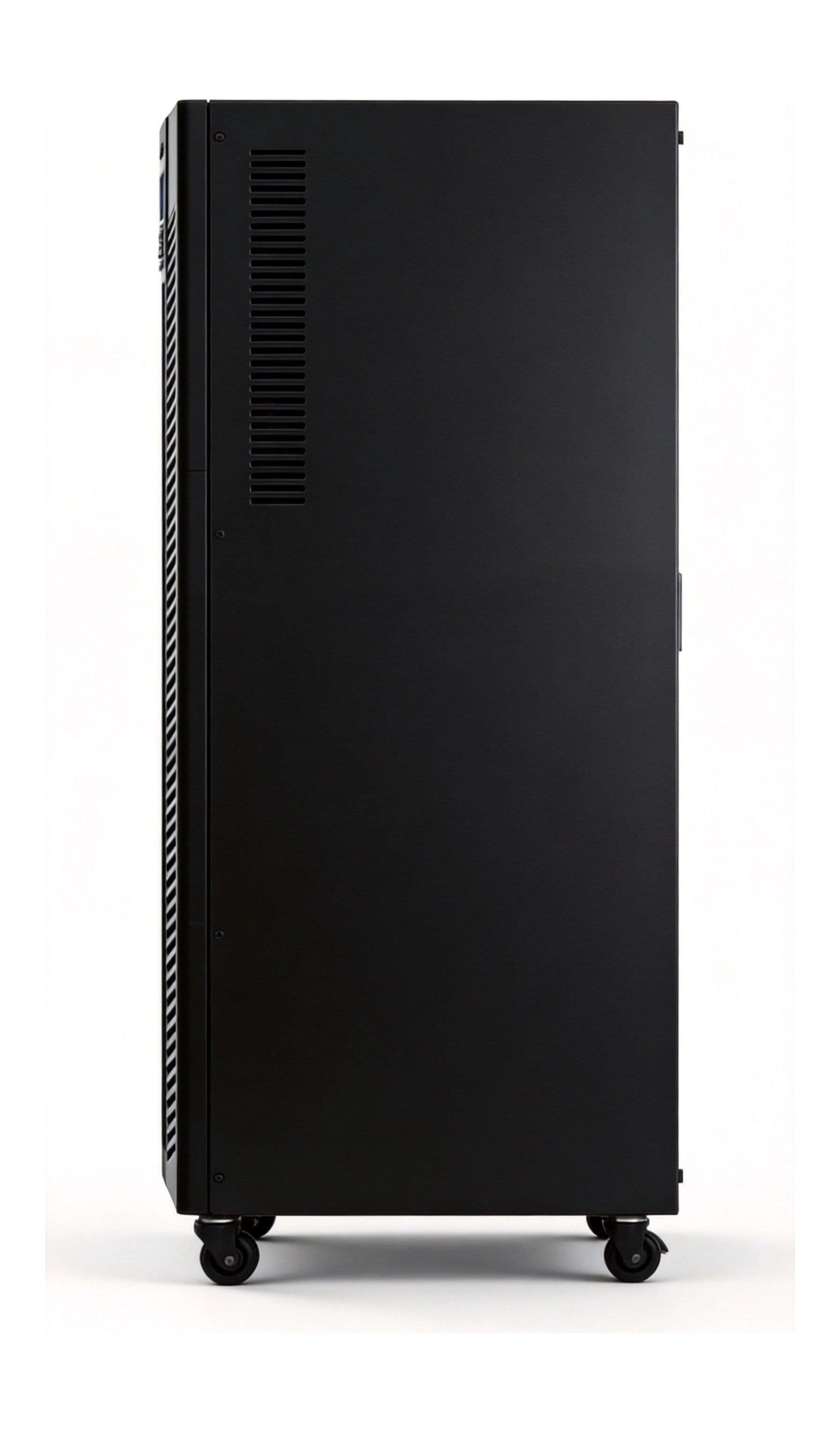

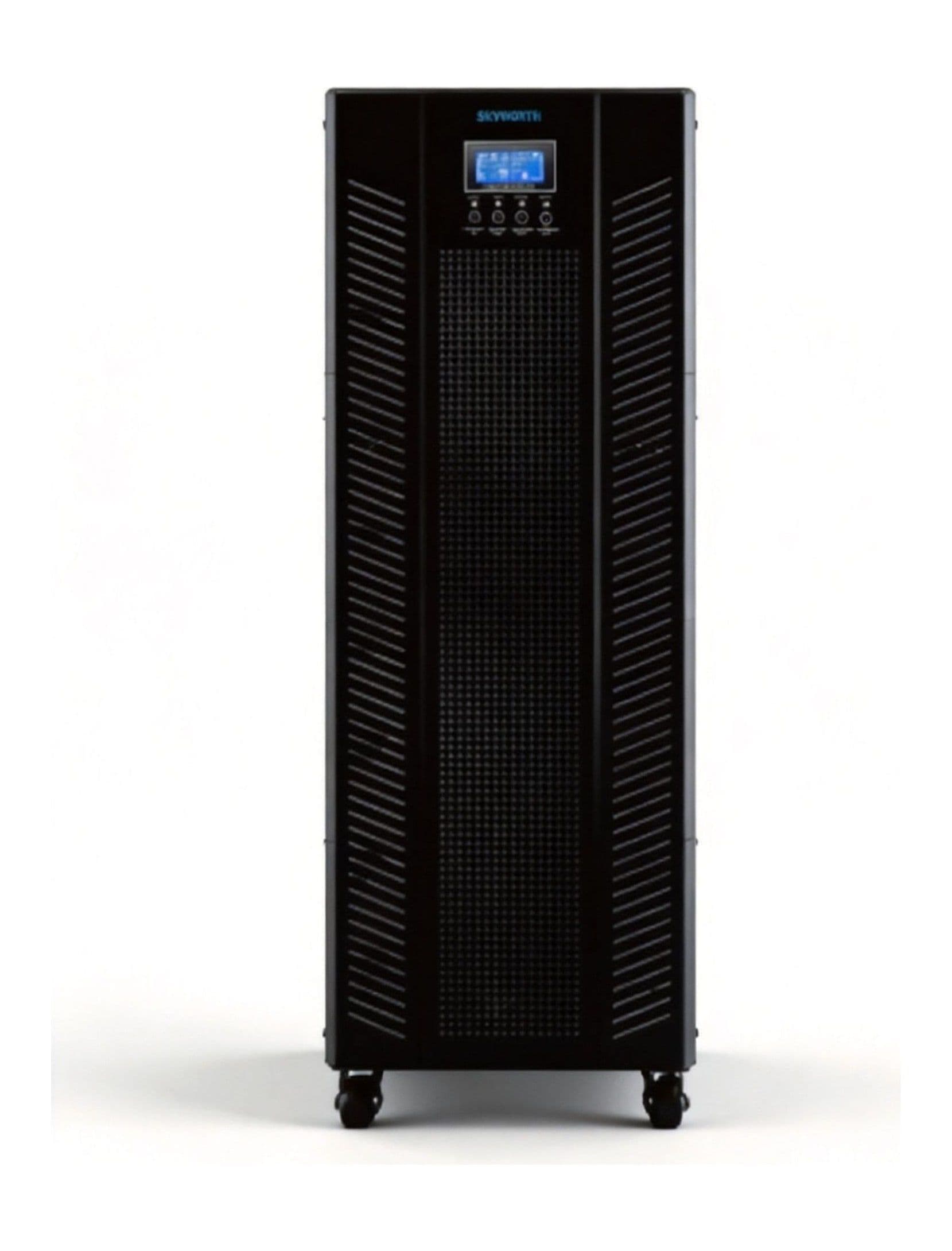

Skyworth UPS Uninterruptible Power Supply
The Skyworth UPS uses modular stacking with hot-swap expansion at 3000/5000/10000VA and up to 96% inverter efficiency. Multiple input/output voltage configurations and intelligent RS232/RJ485 interfaces reduce power interference and grid pollution, delivering stable, clean, uninterrupted power for server rooms, critical equipment and industrial sites.
Main Technical Features
- 3000/5000/10000VA capacities
- Modular stacking with flexible hot-swap expansion
- Up to 96% inverter efficiency, energy-saving
- Configurable input/output voltage formats
- Intelligent RS232/RJ485 communication interfaces
Technical Parameters
| Model | UPS 3000 / 5000 / 10000 VA |
|---|---|
Capacity | 3000 / 5000 / 10000 VA |
Input | 24/35/48/110/220V，-18%~+25% |
Output | 2400 / 4000 / 8000 W；220V±2%；50Hz±1% |
Inverter efficiency | 高达96% / up to 96% |
Communication interface | 智能 RS232、RJ485 |
Operating temperature | -10 ~ 45 |
Storage temperature | -20 ~ 55 |
Working altitude | ≤1500（超过按GB/T3859.2使用） |
Applications
Server rooms, critical equipment and industrial uninterruptible clean power.
