Energy Storage

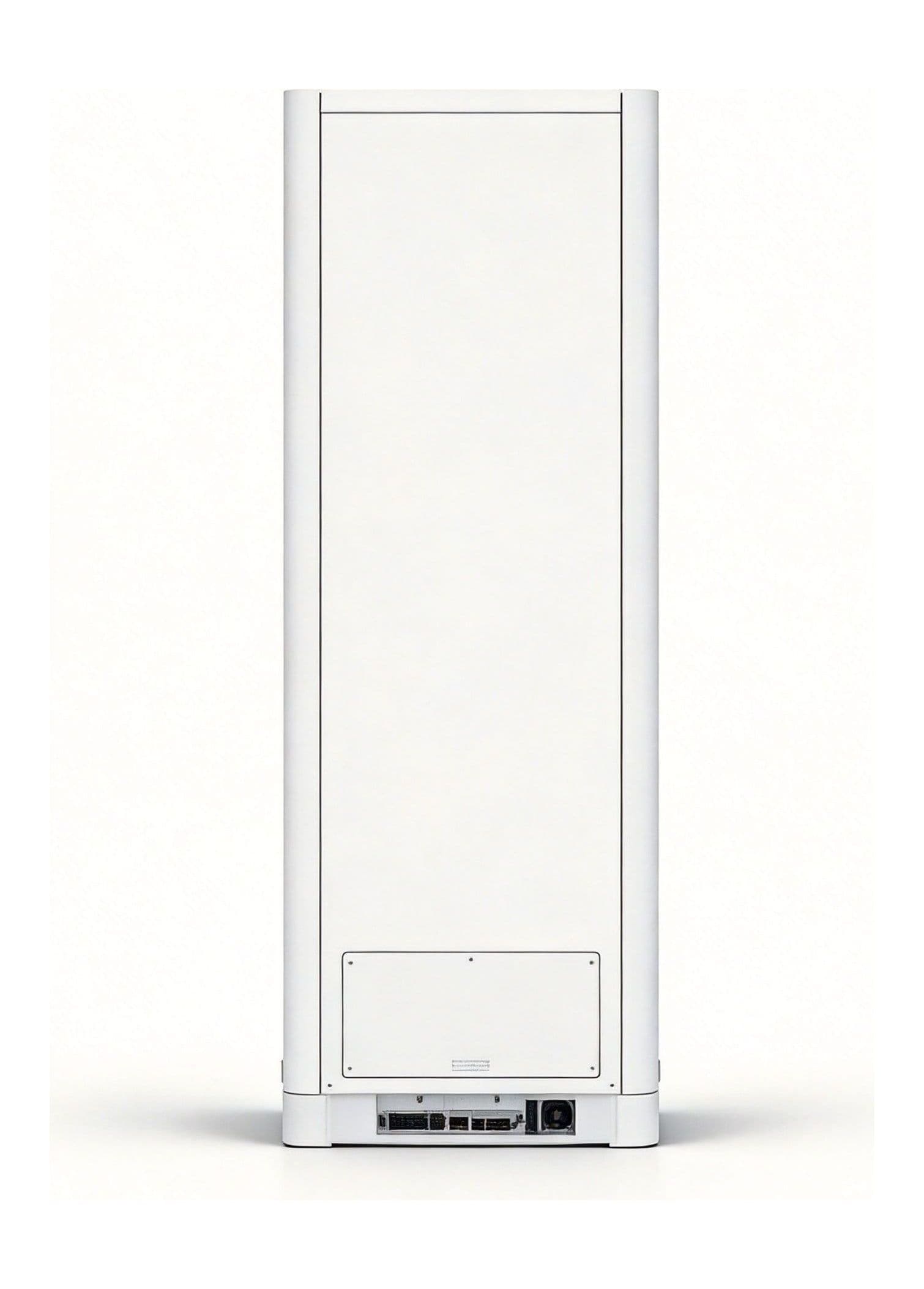

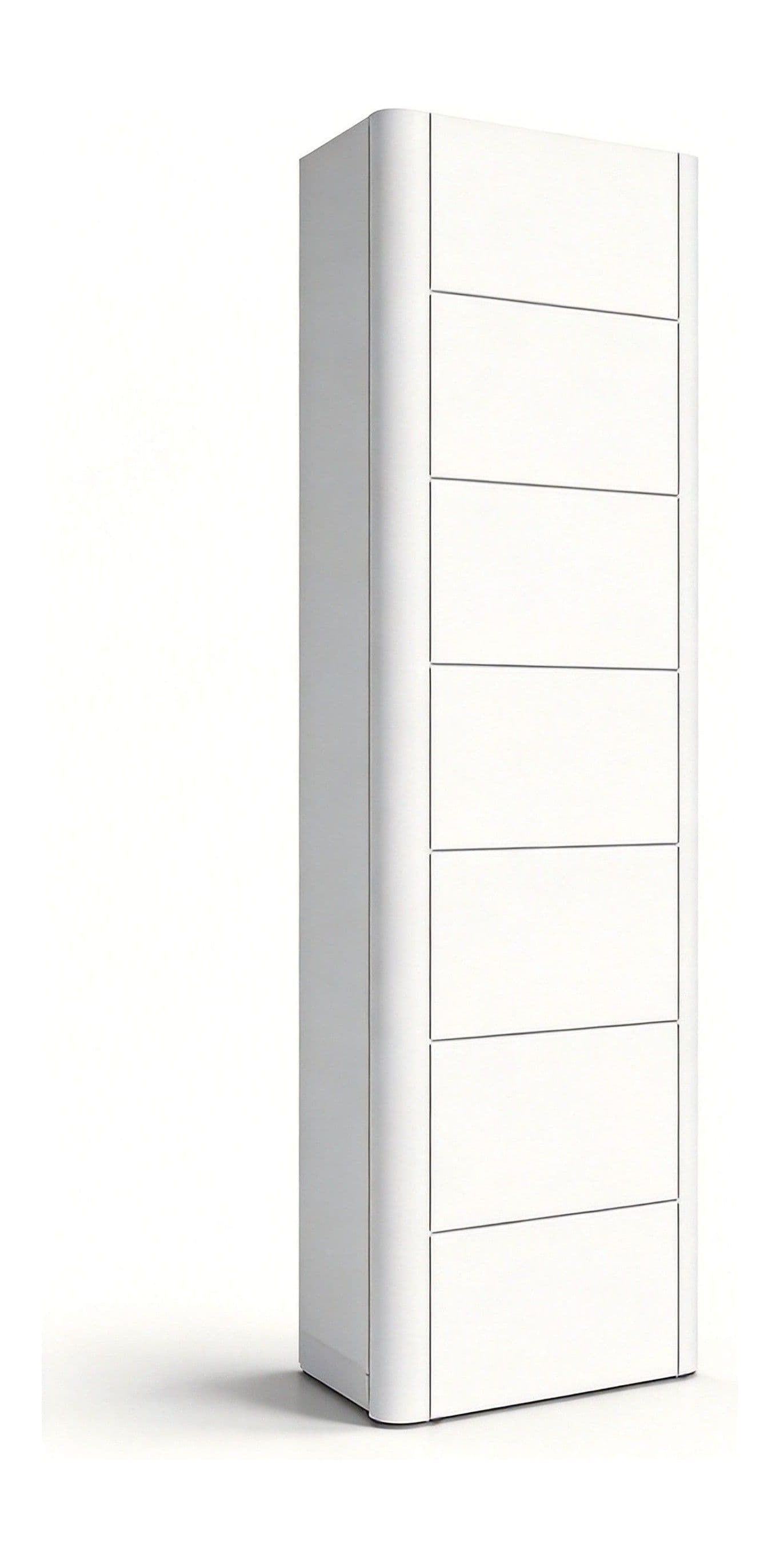

Skyworth CYHC Household Stacked Energy Storage
The Skyworth CYHC household stacked system uses modular 5.12kWh battery blocks (51.2V/100Ah) that scale from 5.12 to 30.72kWh across six capacities. With LFP cells, dedicated thermal management, remote monitoring and automotive-grade explosion-proof design at IP54, it wall- or floor-mounts for self-consumption, peak shaving and backup power.
Main Technical Features
- Modular design, 5.12-30.72kWh flexible capacity
- LFP cells, 51.2V/100Ah standard blocks
- Dedicated thermal management, -20C to 55C
- Remote online status monitoring
- Automotive-grade explosion-proof, IP54, wall/floor mount
Technical Parameters
| Model | CYHC-5000 ~ CYHC-30000 |
|---|---|
Model | CYHC-5000/10000/15000/20000/25000/30000 |
Battery type | 磷酸steel锂 / Lithium iron phosphate |
Cell capacity | 5.12 / 10.24 / 15.36 / 20.48 / 25.6 / 30.72 |
Battery module | 5.12kWh, 51.2V/100Ah |
Rated voltage/current | 51.2VDC / 50A |
Installation | 壁挂/落地 / Wall or floor mounting |
Working temperature | -20 ~ 55 |
Protection rating | IP54 |
Unit size | 580×500×560 ~ 580×500×1420 |
Unit weight | 85 / 130 / 175 / 220 / 265 |
Applications
Residential self-consumption, peak-valley arbitrage and household backup power.
