Energy Storage

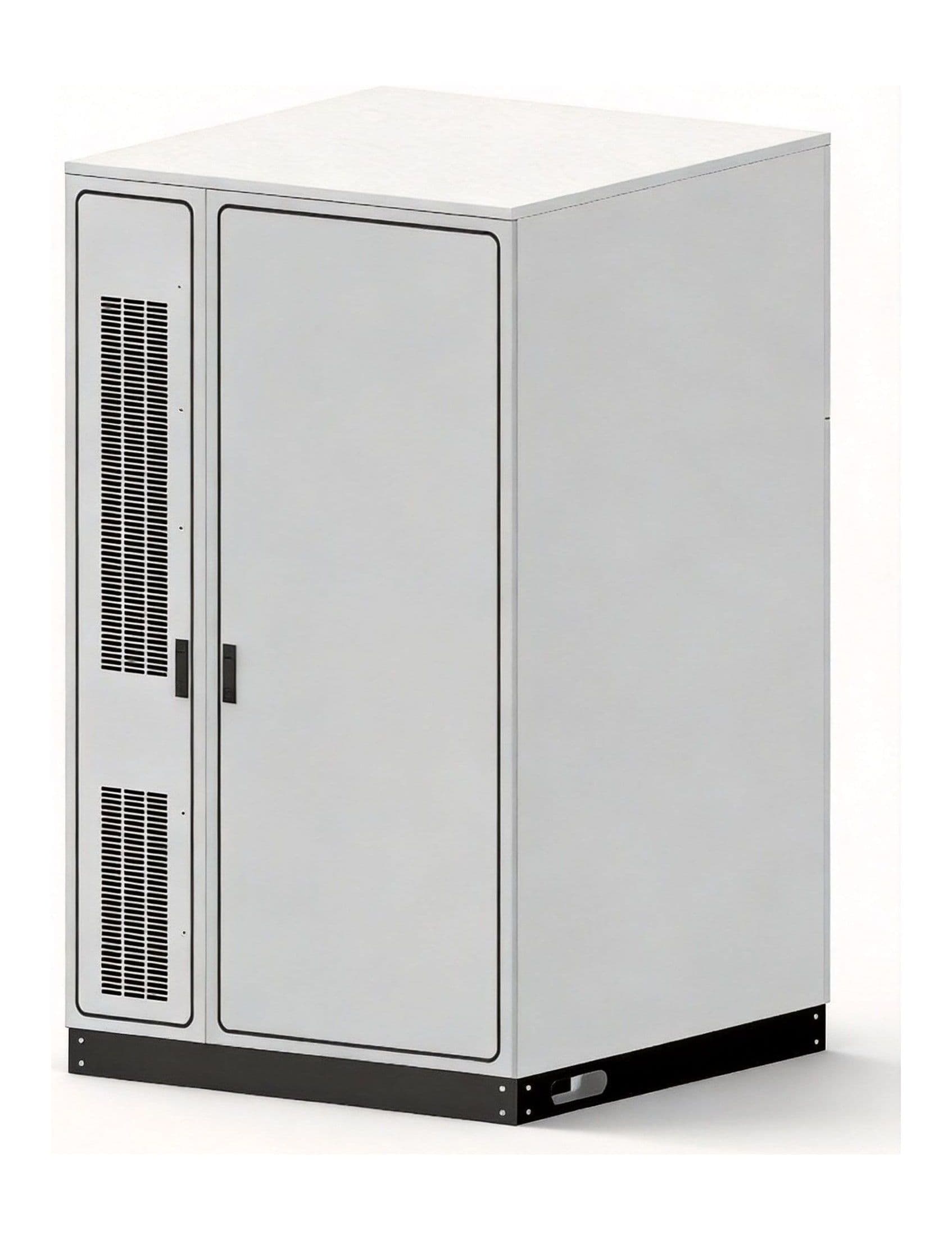

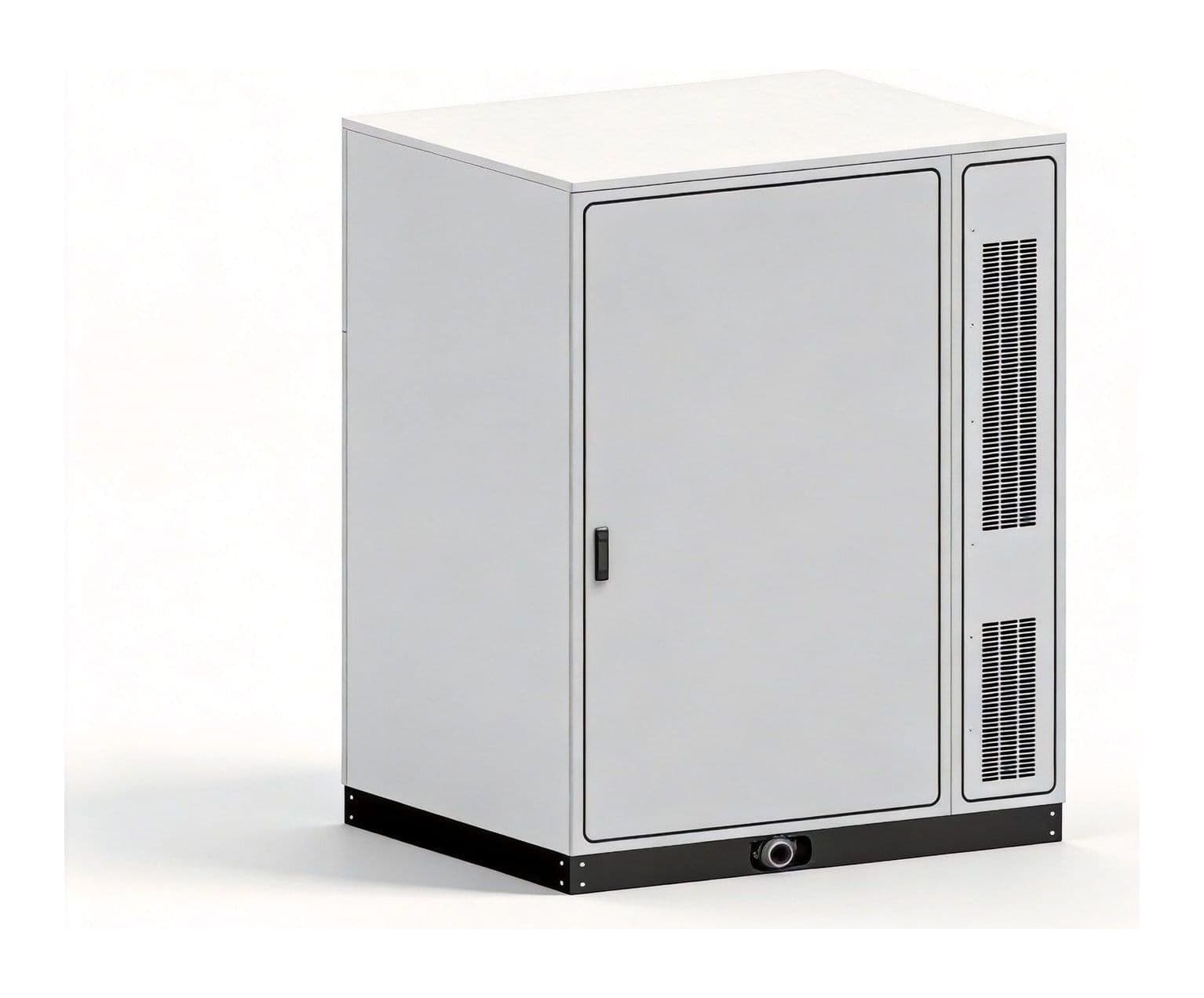

Skyworth CYGC Commercial & Industrial Storage Cabinet
The Skyworth CYGC is an integrated outdoor C&I storage cabinet covering 100-200kW and 225-372kWh with air- or liquid-cooling options. LFP cells deliver 6000 long cycles and over 10 years of system life. It supports centralized or distributed installation with millisecond cloud control for peak shaving, demand management, PV-plus-storage and backup.
Main Technical Features
- 100-200kW power, 225-372kWh capacity
- LFP cells, 6000 cycles, over 10-year life
- Air- or liquid-cooling thermal options
- Centralized or distributed installation, space-saving
- Millisecond cloud monitoring, IP54 outdoor protection
Technical Parameters
| Model | CYGC-100225 ~ CYGC-125262 |
|---|---|
Model | CYGC-100225/100232/125232/200372/125262 |
Cell type | LFP-3.2V/280K（及3.22V/56.6Ah） |
Power/Capacity | 100~200kW / 225~372kWh |
Cell capacity | 225 / 232 / 372 / 262 |
Rated voltage | 400VAC（200372为690VAC） |
Rated frequency | 50/60 |
Temperature control | 风冷 / 液冷 / Air or liquid cooling |
Dimension | 1453×1428×2537 ~ 1600×1920×2600 |
Weight | 2450 / 2500 / 3500 / 3950 |
Ambient temperature | -20 ~ 50 |
Protection class | IP54 |
Applications
Factory peak shaving, demand management, PV-plus-storage and C&I backup power.
