Energy Storage

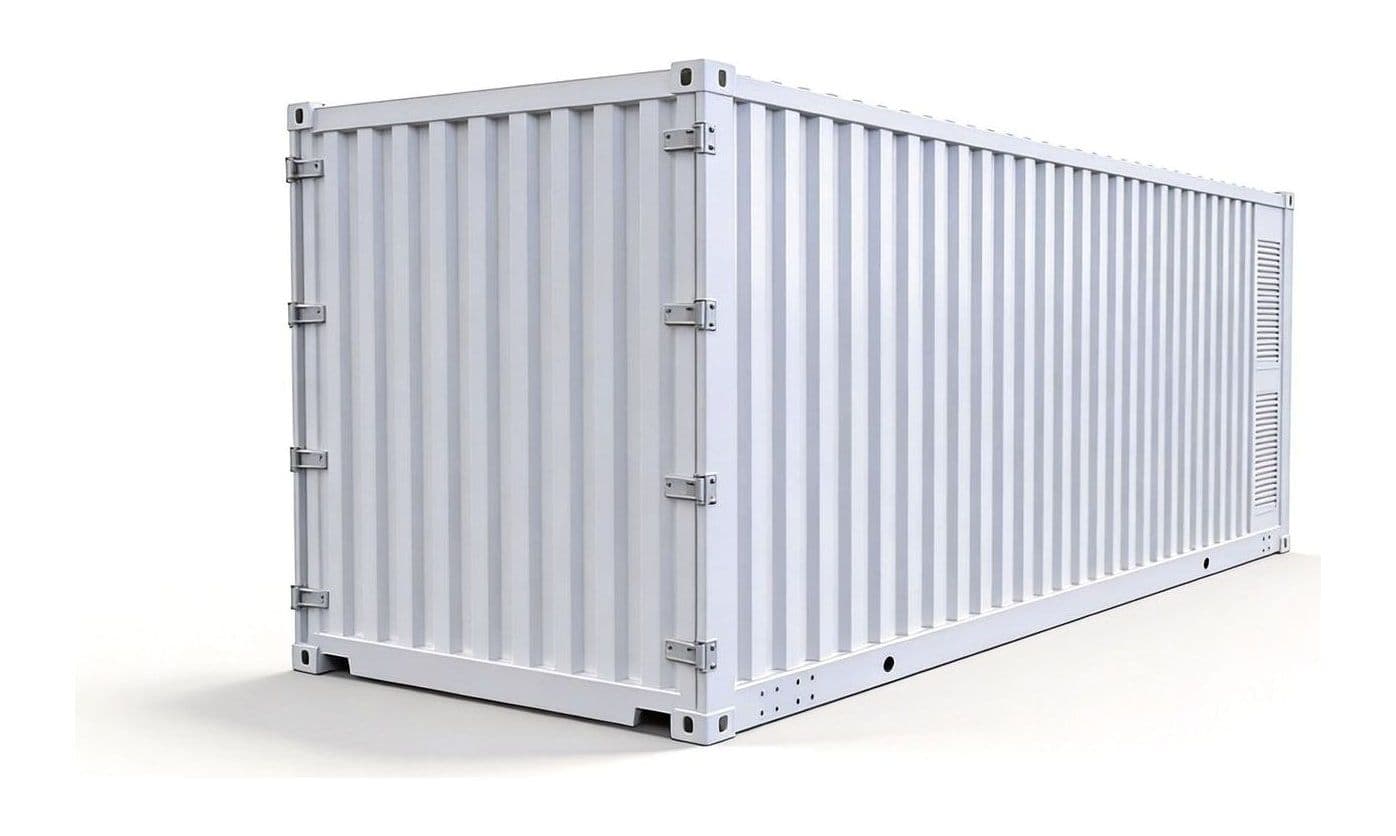

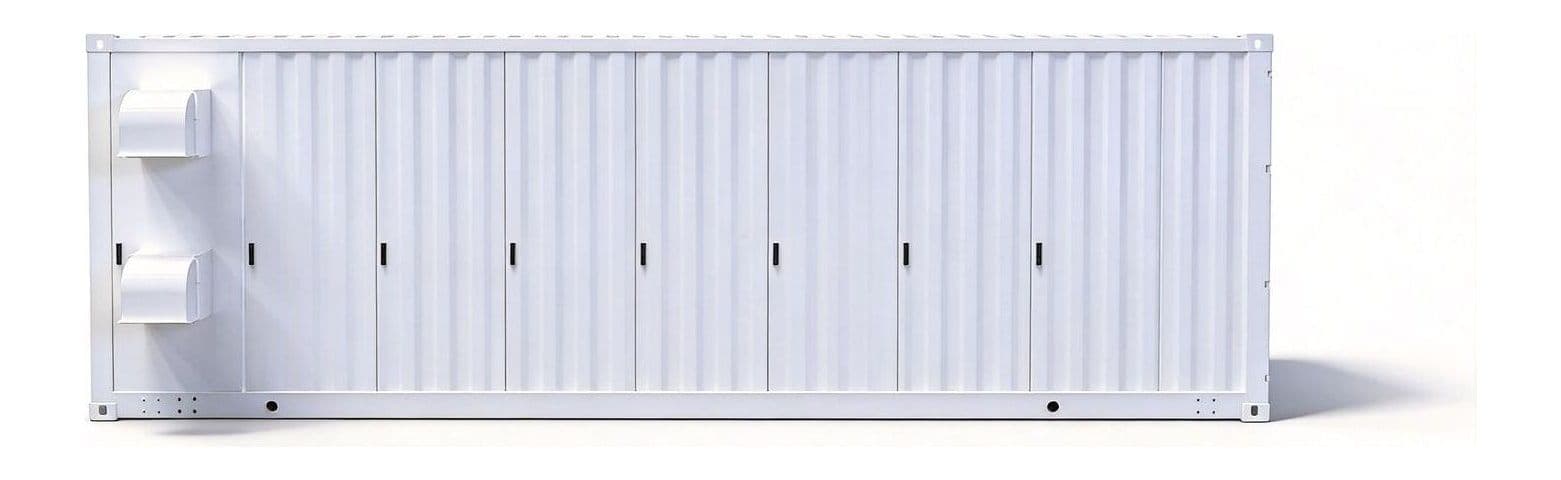

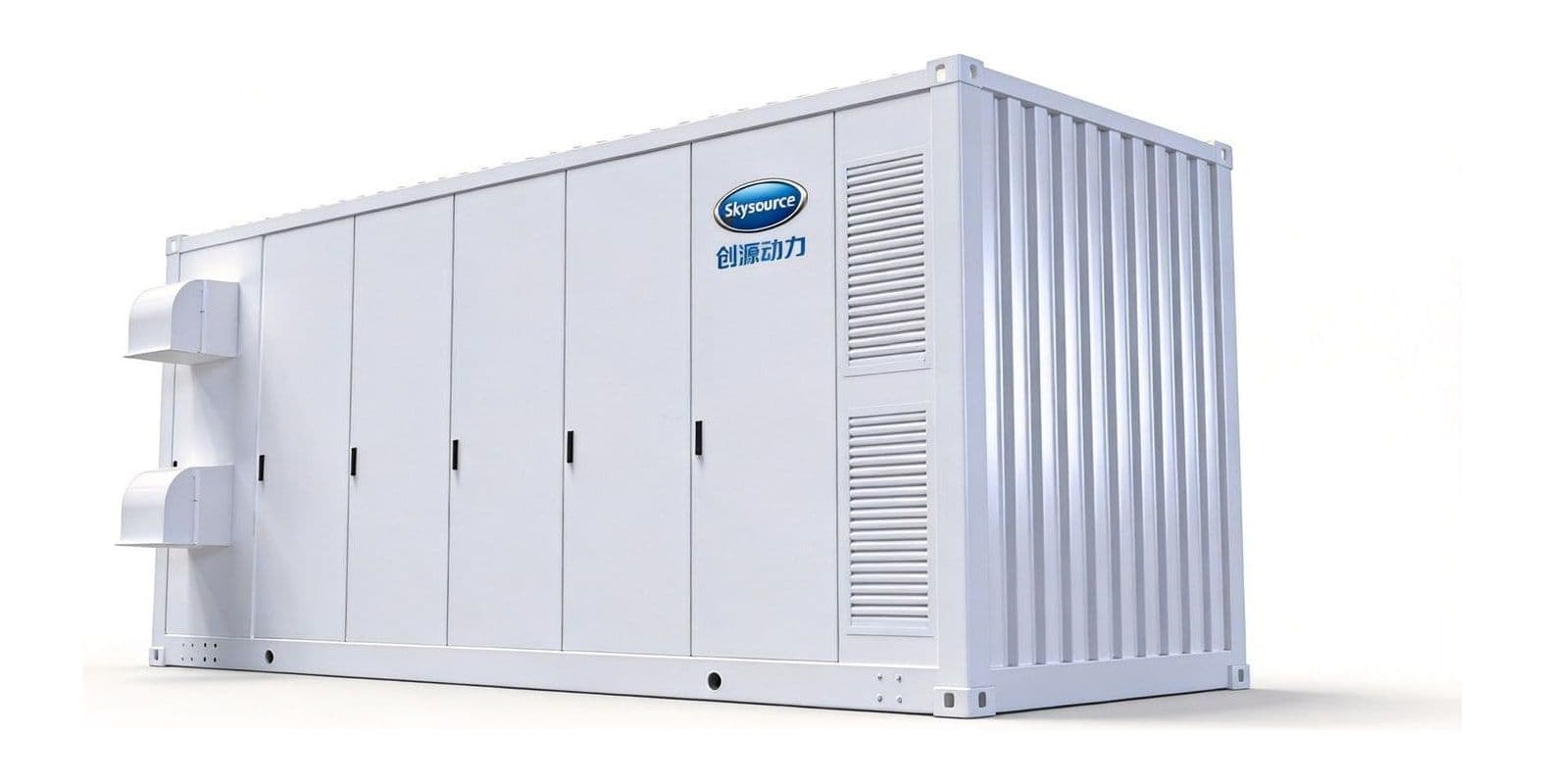

Skyworth Containerized Energy Storage System
The Skyworth containerized system integrates into a standard container at 1-2.5MW and 1-5MWh per unit, with liquid/air cooling. Class III explosion-proof design and compartmentalized layout protect the cells and extend life; plug-and-play clusters and external maintenance enable fast deployment for large C&I, renewables integration, grid peak/frequency regulation and standalone storage stations.
Main Technical Features
- 1-2.5MW per unit, 1-5MWh capacity
- Standard-container integration, plug and play
- Class III explosion-proof, compartment thermal control
- Liquid cooling (air optional) for longer cell life
- External maintenance, fast deployment, grid-scale ready
Technical Parameters
| Model | 1MW/1MWh ~ 2.5MW/5MWh |
|---|---|
Product model | 1.725MW/3.35MWh；1.86MW/3.72MWh；2.5MW/5MWh；1MW/1MWh |
Cell type | LFP-3.2V/280K（2.5MW为3.2V314Ah） |
Nominal capacity | 3.35 / 3.72 / 5.01 / 1 MWh |
Nominal voltage | 1331.2V（1MW为1209.6V） |
Nominal charge/discharge power | 1725 / 1860 / 2500 / 1000 kW |
DC conversion efficiency | ≥93% |
Protection class | IP54 |
Operating temperature | 充电0~50；放电-20~50（1MW -10~70） |
Communication mode | RS485 / Ethernet / CAN |
Humidity/Cooling | ≤95%；液冷（1MW风冷） |
Applications
Large C&I, wind/solar plant integration, grid peak & frequency regulation and utility storage stations.
