Electric Tricycles & ATV

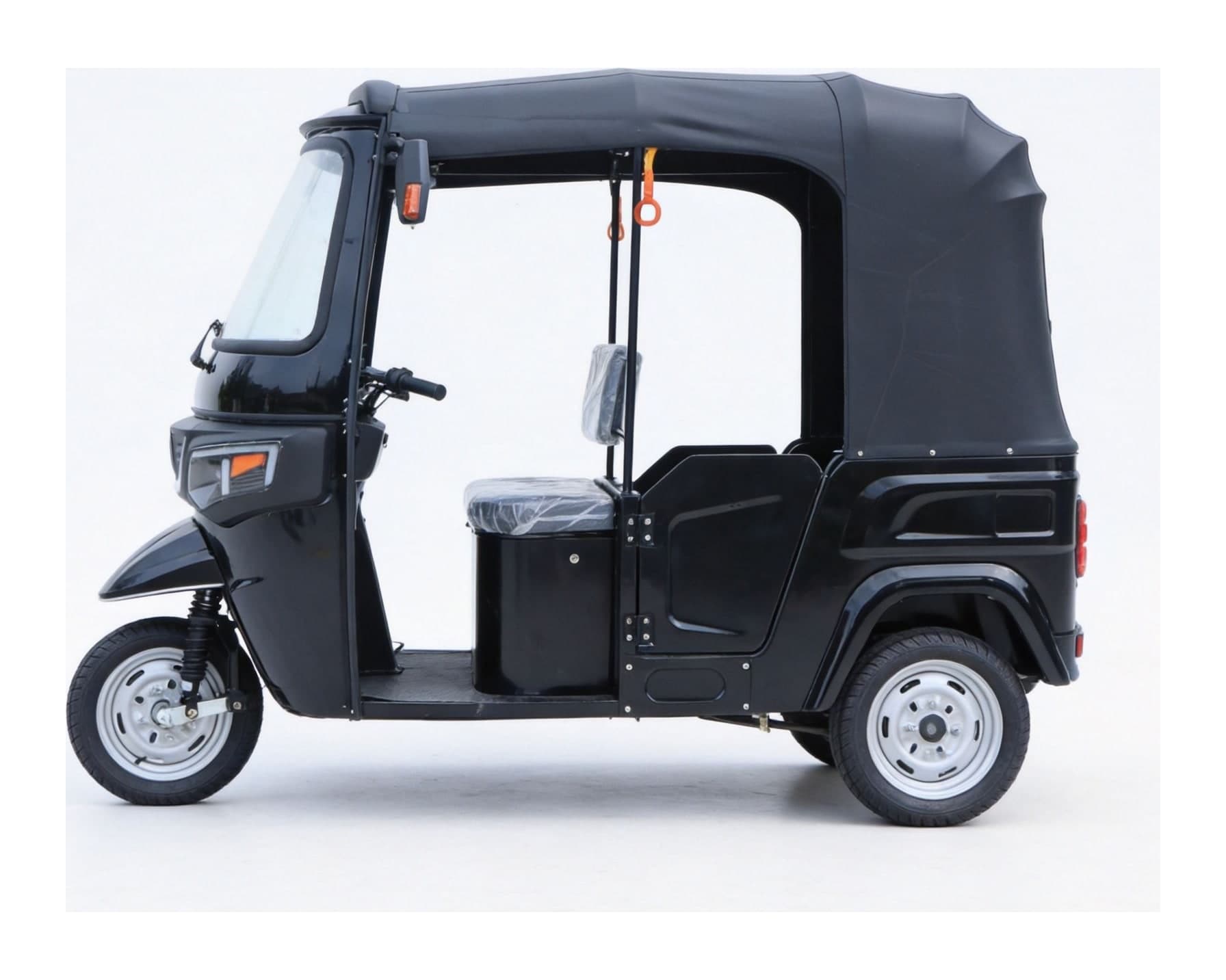

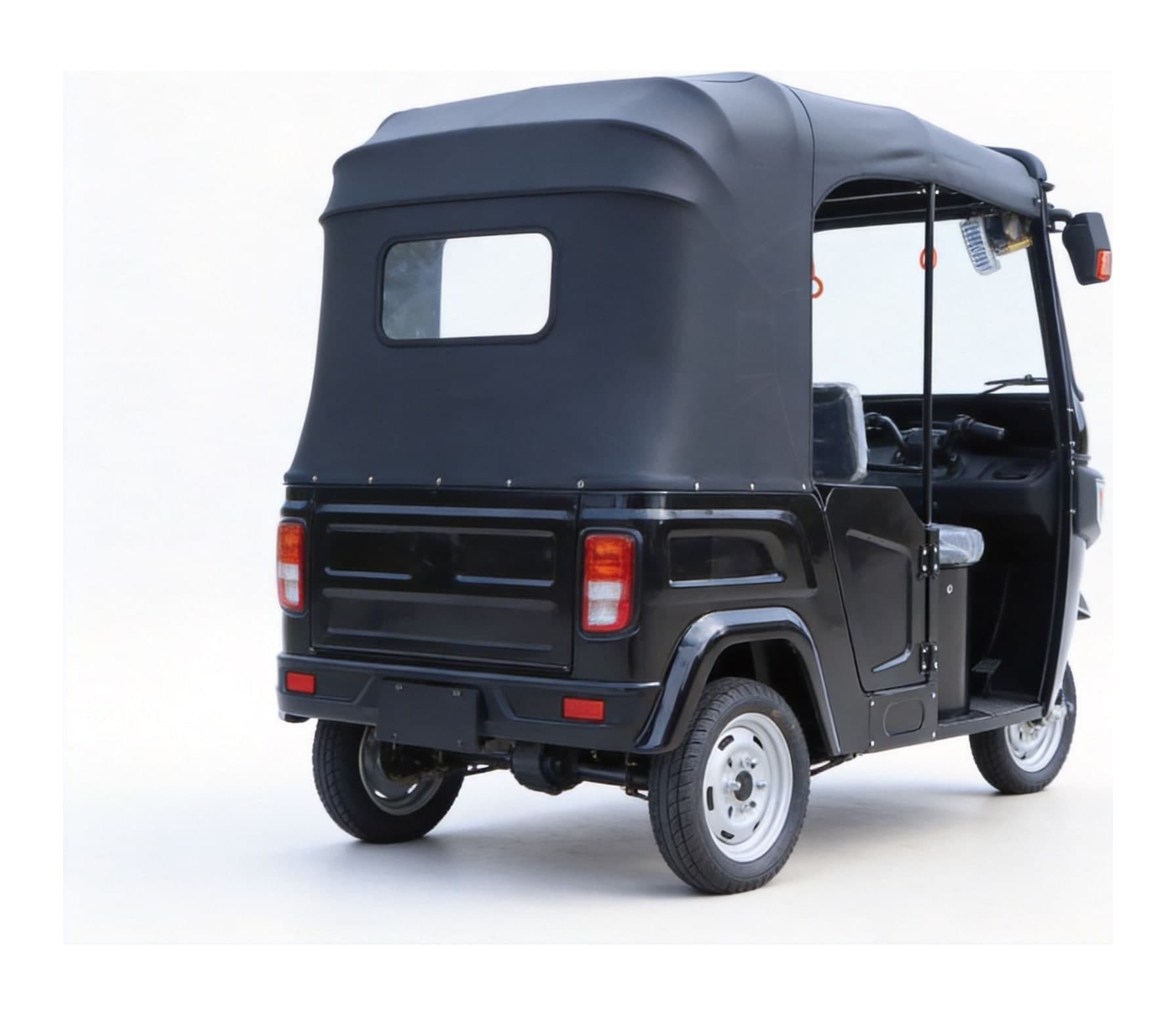

JINPENG Keke Single-Row Electric Passenger Tricycle
The JINPENG Keke single-row electric passenger tricycle uses a 2000W PMSM motor and a 72V/100Ah LFP battery, reaching 50km/h with about 100km range. An integral rear axle with leaf springs and hydraulic drum CBS brakes carry 4+1 passengers. Available in CKD/SKD export packing, it suits taxi and community shuttle service.
Main Technical Features
- 2000W PMSM motor, 50km/h top speed
- 72V/100Ah LFP battery, about 100km range
- Integral rear axle with leaf springs, hydraulic drum CBS
- 4+1 passengers, CKD/SKD packing available
Technical Parameters
| Model | Keke Single-Row |
|---|---|
Model | Keke 单排 Single-row |
Motor | 2000W 永磁同步 PMSM |
Battery | 72V / 100Ah LFP |
Top speed | 50 km/h |
Range | 约100 km |
Dimensions | 2600×1250×1800 mm |
Wheelbase | 1900 mm |
Curb weight | 400 kg |
Passengers | 4+1 |
Axle/suspension | 一体桥+钢板弹簧 Integral axle, leaf springs |
Brakes | 液压drum刹 CBS Hydraulic drum CBS |
Tires | 400-12 |
Charging time | 6-8 h |
Container loading | 35 pcs/40HQ (CKD), 27 pcs (SKD) |
Applications
Electric taxi and community shuttle passenger service.
