Electric Tricycles & ATV

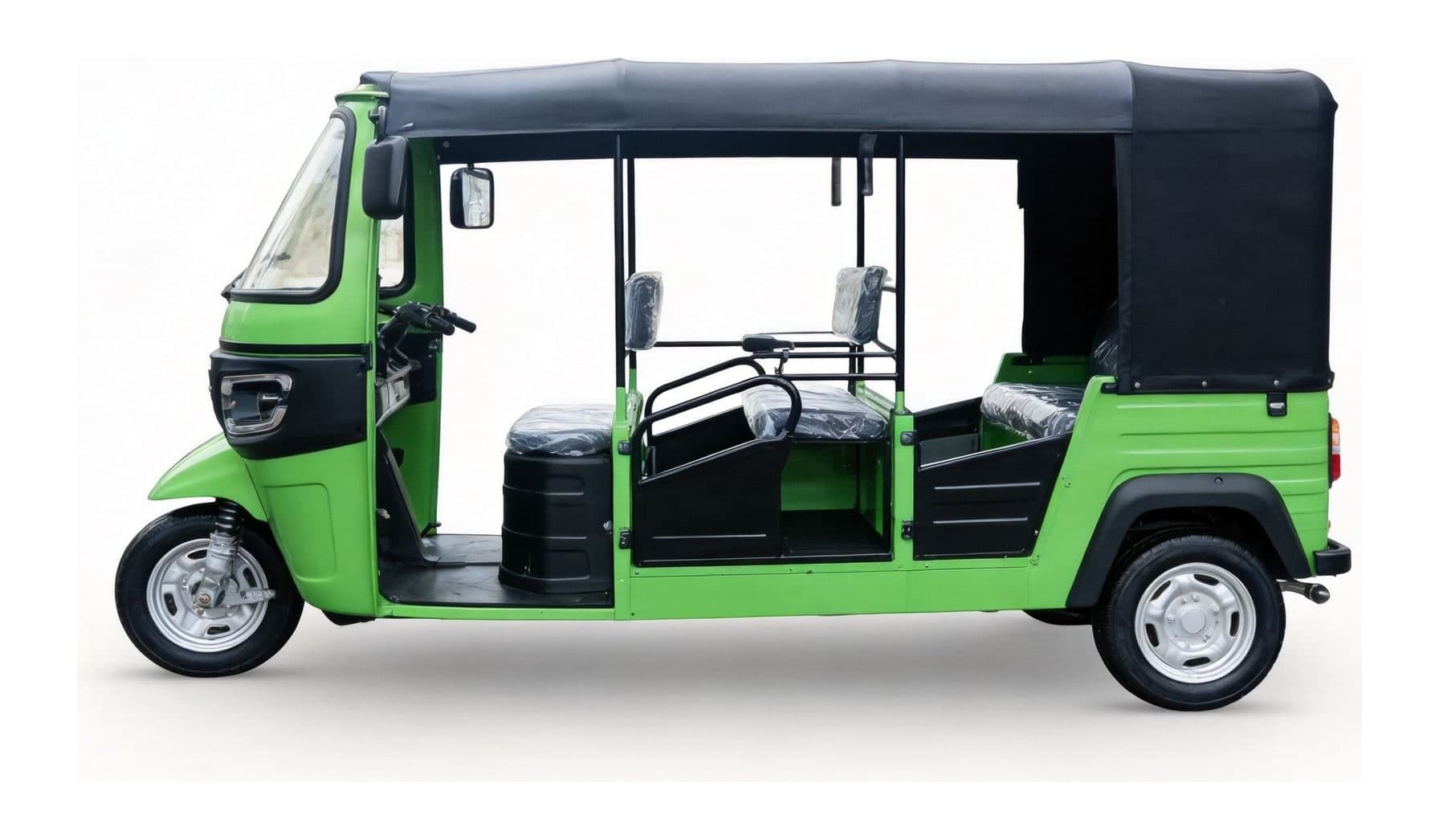

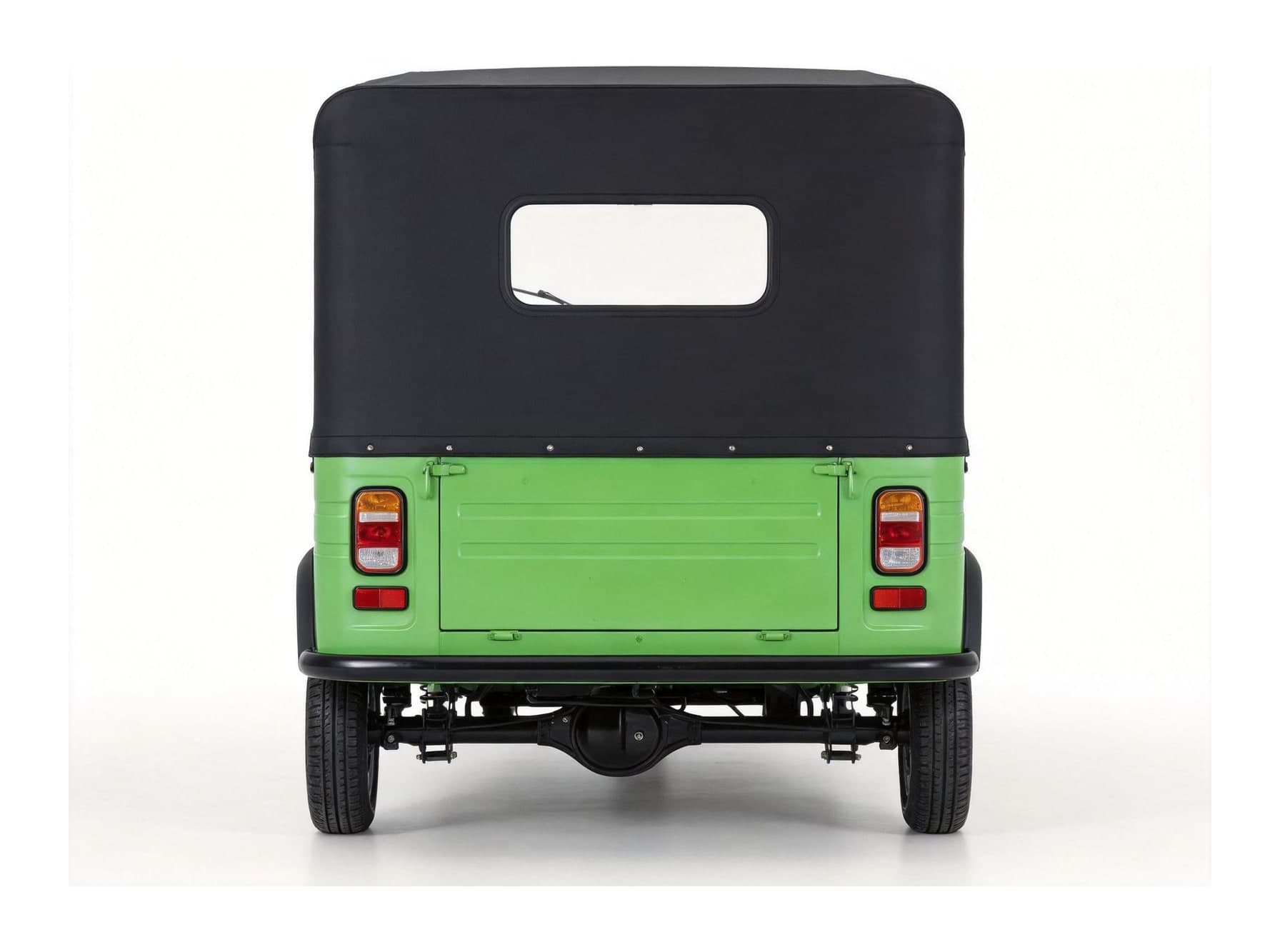

HUANGHE SU7 Plus Electric Passenger Tricycle
The HUANGHE SU7 Plus is an extended three-row electric passenger tricycle with a 2750mm wheelbase and 3400mm body, seating 7 rated passengers (up to 9) at a 60km/h top speed. Its 4000W motor (peak over 9kW), 76.8V LFP battery, hydraulic CBS brakes and independent half-shaft drive make it ideal for high-volume short-haul passenger and group shuttle work.
Main Technical Features
- 2750mm wheelbase extended body, 7 rated seats (1+3+3), up to 9
- 4000W motor, peak over 9kW, 60km/h top speed
- 76.8V LFP battery, hydraulic CBS, independent half-shaft
- Optional 5kW range extender
Technical Parameters
| Model | HH4000DZK SU7 Plus |
|---|---|
Model | HH4000DZK SU7 Plus |
Motor | 4000W（峰值≥9kW，current limit130A） |
Battery | 76.8V 100Ah / 150Ah LFP |
Top speed | 60 km/h |
Gradeability | ≥15° |
Dimensions (L×W×H) | 3400×1360×1800 mm |
Wheelbase | 2750 mm |
Curb weight | 510 / 540 kg |
Rated/max passengers | 7 (1+3+3) / 9 |
Brakes | 液压 CBS Hydraulic CBS |
Tires | 135-70R-12 |
Charging time | 5 h / 8 h |
Applications
High-volume short-haul passenger and group shuttle transport.
