Electric Tricycles & ATV

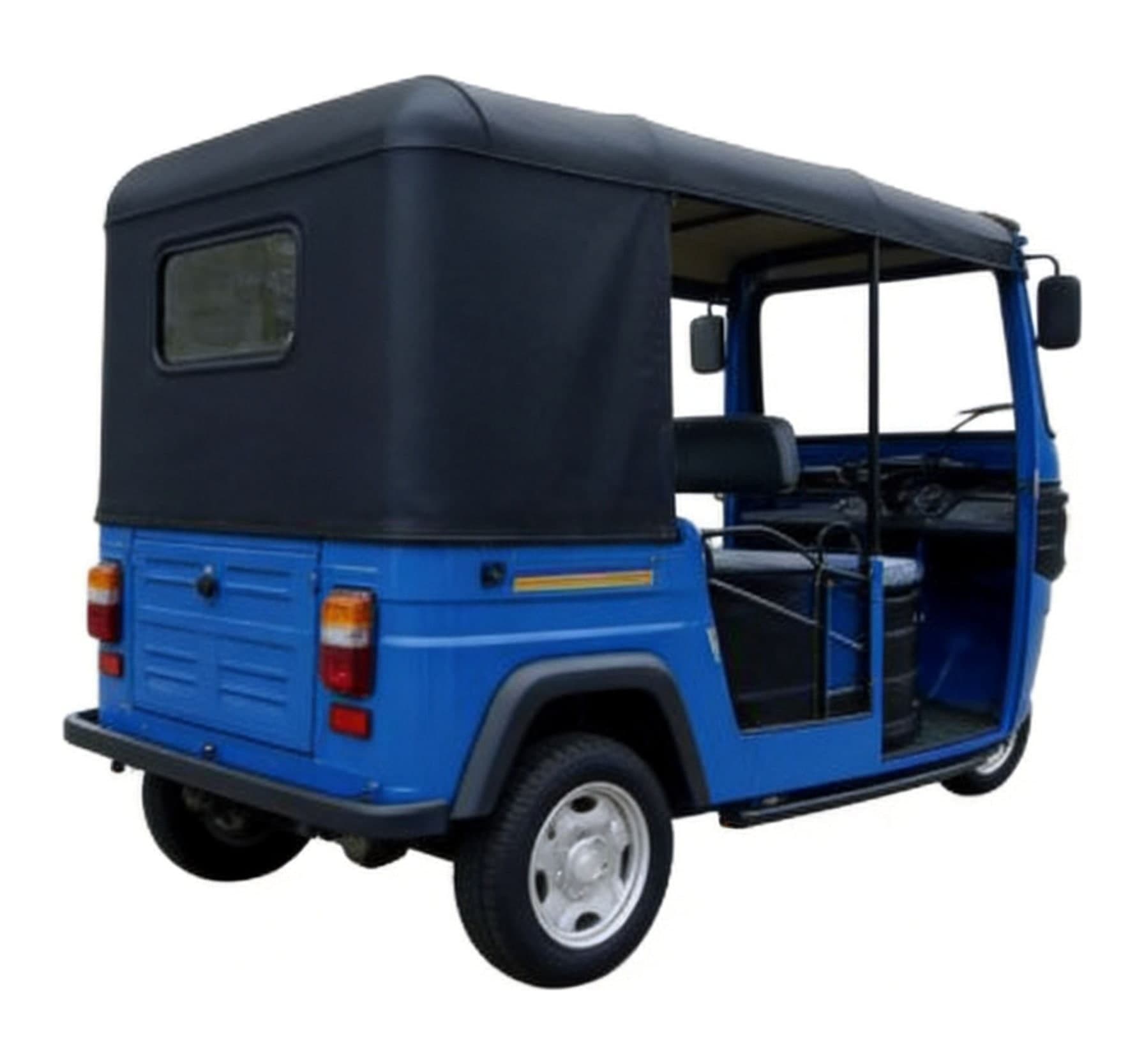

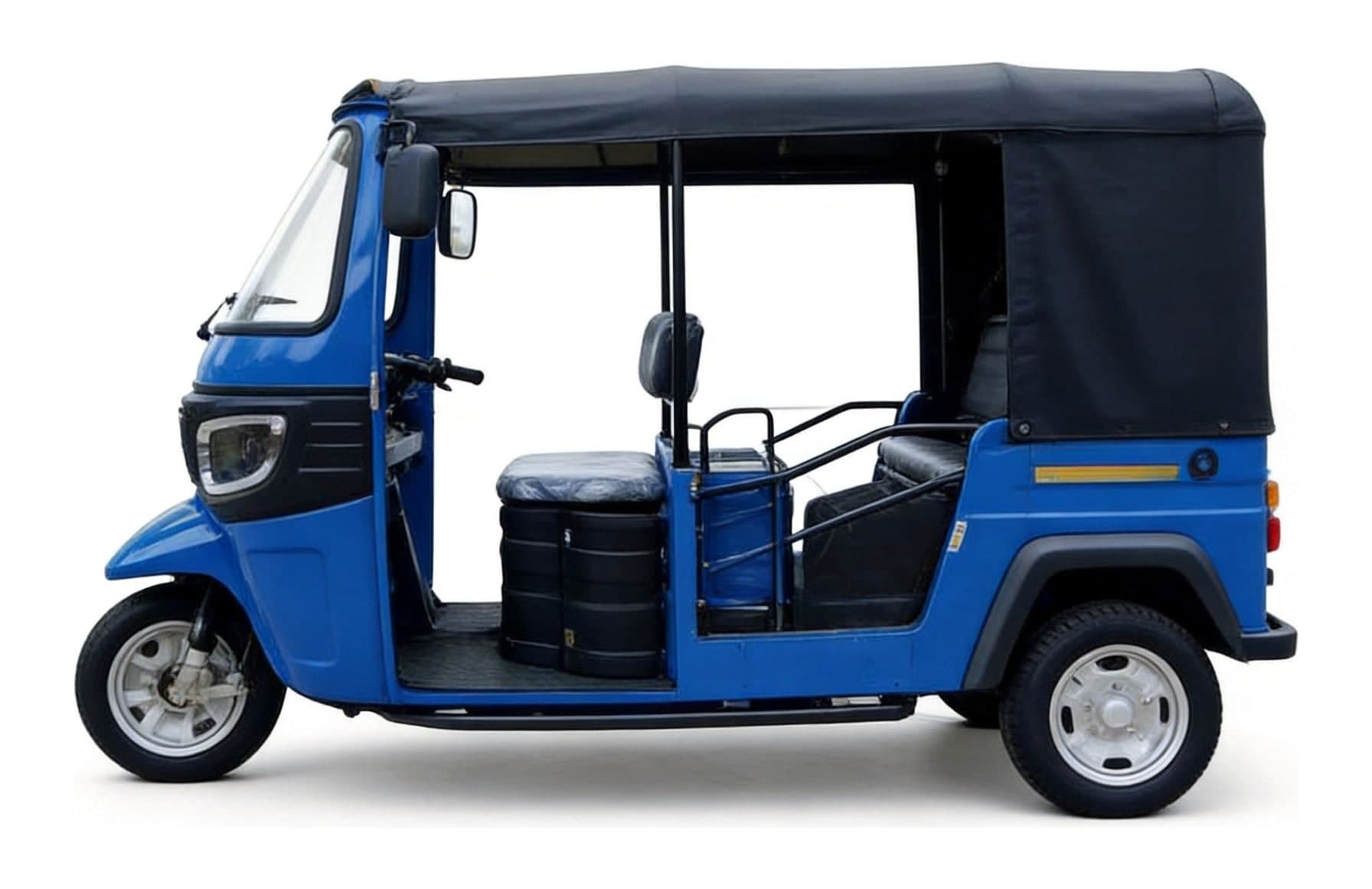

HUANGHE SU4 Plus Electric Passenger Tricycle
The HUANGHE SU4 Plus is a double-row electric passenger tricycle powered by a 4000W motor (peak over 9kW) and a 76.8V LFP battery, reaching 55km/h with a 110/170km range. Hydraulic CBS brakes and independent half-shaft drive carry 4 rated passengers (up to 6). An optional 5kW range extender and roof rack are available. Tough and easy to maintain, it suits urban taxi, shuttle and short-haul passenger work.
Main Technical Features
- 4000W motor, peak over 9kW, 55km/h top speed
- 76.8V 100/150Ah LFP battery, 110/170km range
- Hydraulic CBS brakes, independent half-shaft drive
- 4 rated seats (1+3), up to 6
- Optional 5kW range extender and roof rack
Technical Parameters
| Model | HH4000DZK SU4 Plus |
|---|---|
Model | HH4000DZK SU4 Plus |
Motor | 4000W（峰值≥9kW，current limit130A） |
Battery | 76.8V 100Ah / 150Ah 磷酸steel锂 LFP |
Top speed | 55 km/h |
Gradeability | ≥15° |
Range | 110 / 170 km |
Dimensions (L×W×H) | 2800×1360×1800 mm |
Wheelbase | 2150 mm |
Curb weight | 480 / 510 kg |
Rated/max passengers | 4 (1+3) / 6 |
Brakes | 液压 CBS 联合制动 Hydraulic CBS |
Tires | 135-70R-12 |
Charging time | 5 h / 8 h |
Applications
Urban taxi, shuttle and short-haul electric passenger transport.
