Water Pumps

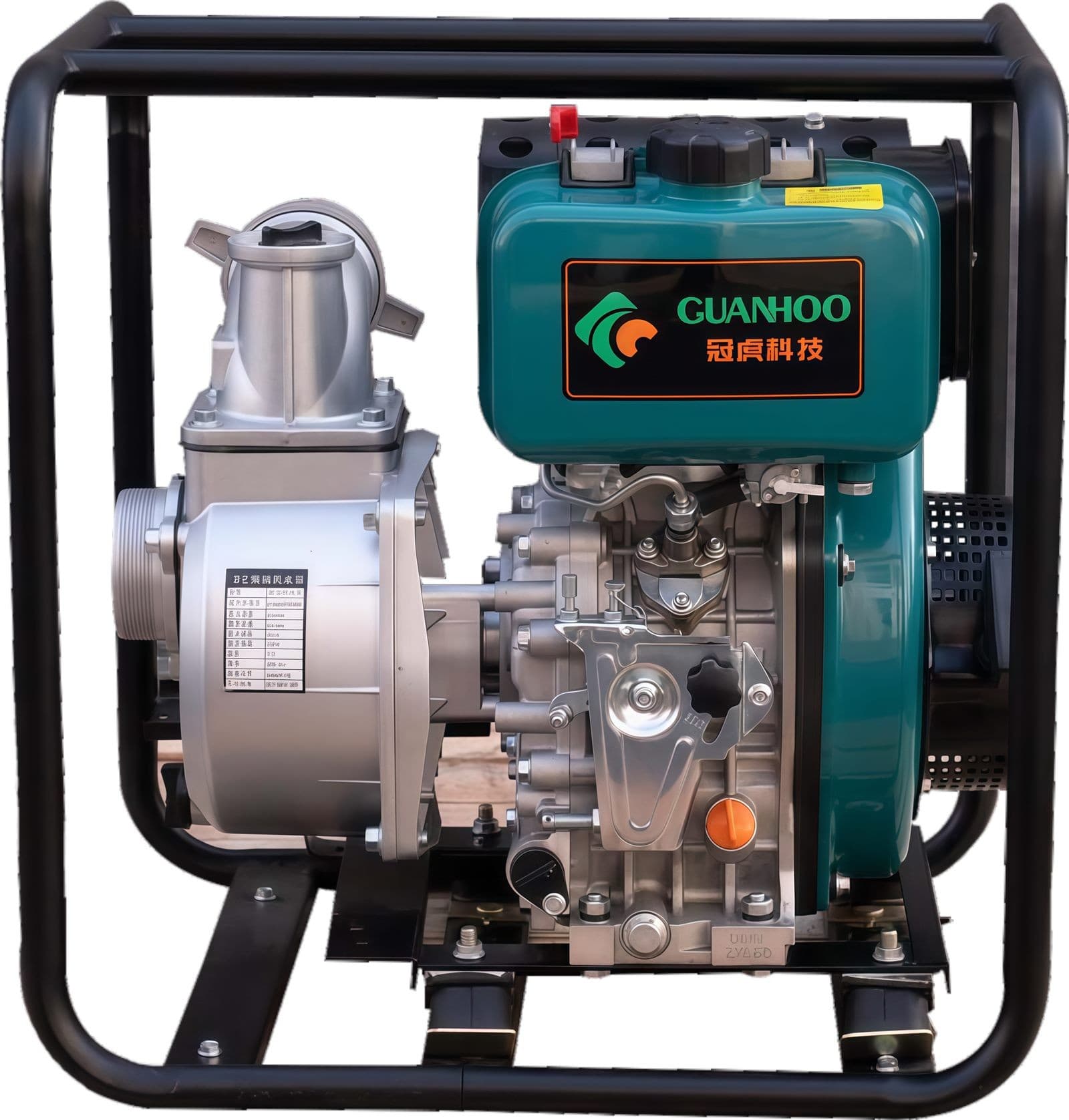

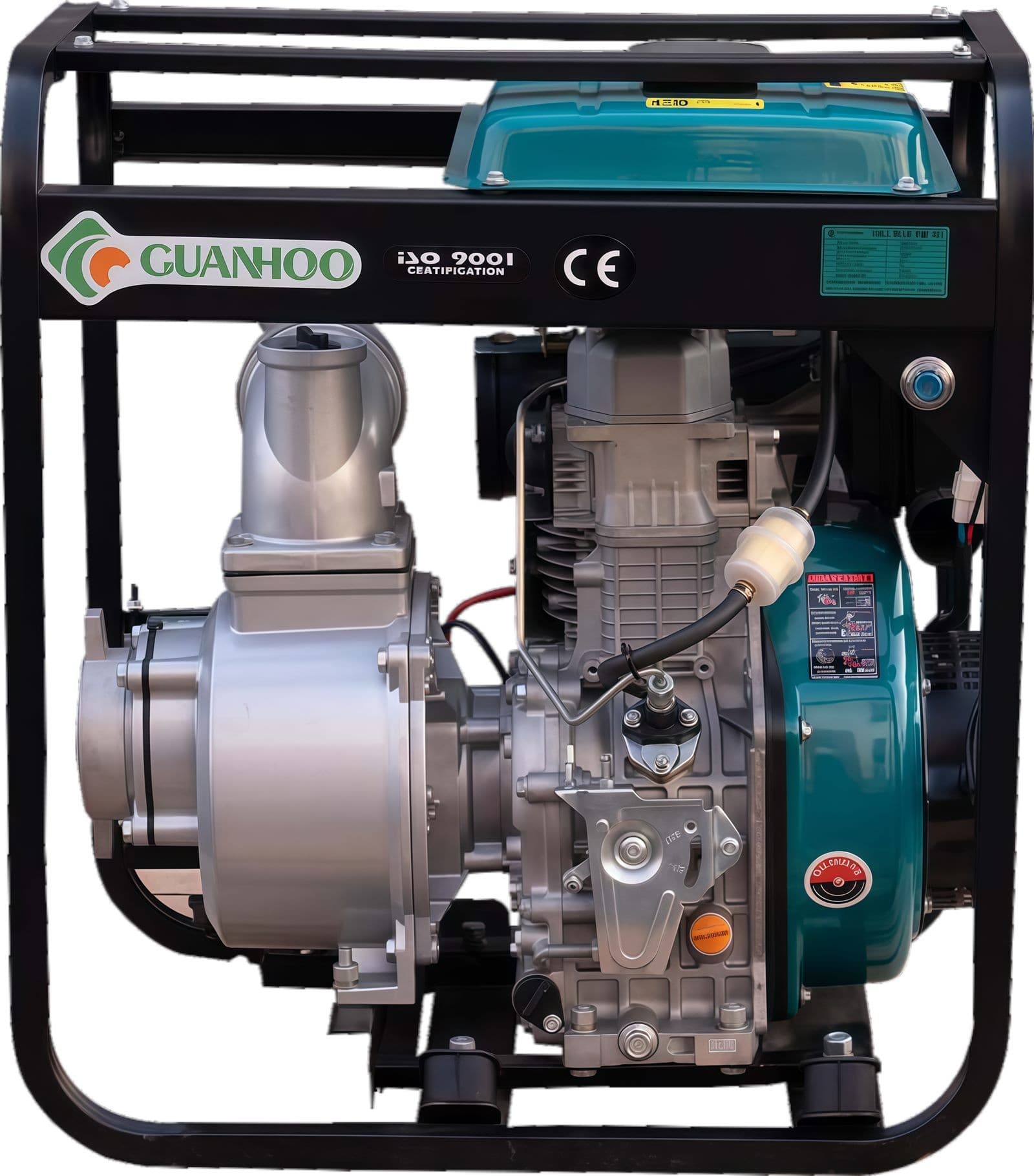

Air-Cooled Diesel Water Pump
Air-cooled diesel water pump driven by a single-cylinder air-cooled diesel engine. Low fuel consumption, long running time and high reliability, with no radiator required — ideal for remote farmland, mountain irrigation and off-grid drainage.
Main Technical Features
- Powerful pumping capacity with large flow; compact design for easy movement.
- Widely used in agricultural irrigation, water supply/drainage for fish ponds, flood fighting and emergency rescue, construction sites and tunnels.
- Three types of diesel water pump sets are available — standard pump, high-pressure pump and cast-iron pump — to meet diverse requirements.
- Super strong pumping capacity, large flow rate, lightweight design, and convenient mobility.
- Widely used in agricultural irrigation, fishing pond water supply and drainage, flood control and emergency response, construction sites and tunnels, etc.
- There are three types of diesel engine water pump units available for you to choose from, including ordinary pumps, high-pressure pumps, and cast iron pumps, to meet various needs.
Technical Parameters
| Model | GHP50B Self-priming clean water pump | GHP80B/BE/L/LE Self-priming clean water pump | GHP100B/BE/L/LE Self-priming clean water pump | GHP150L/LE Self-priming clean water pump | GHP50HB/HBE/HL/HLE High-pressure water pump | GHP80HB/HBE/HL/HLE High-pressure water pump |
|---|---|---|---|---|---|---|
Inlet and outlet diameter | 50 (2 inch) | 80 (3 inch) | 100 (4 inch) | 153 (6 inch) | 50 (2 inch) | 80 (3 inch) |
Flow | 40 | 45 | 96 | 153 | 23 | 38 |
Lift | 30 | 24 | 31 | 135 | 50 | 75 |
Self-priming time | 70 | 120 | 180 | 180 | 30 | 30 |
Maximum suction lift | 8.0 | 8.0 | 7.0 | 7.0 | 7.0 | 7.0 |
Tank capacity | Standard 2.5 / extended 12.5 | Standard 2.5 / extended 12.5 | Standard 5.5 / extended 12.5 | 12.5 | Standard 3.5 / extended 12.5 | Standard 5.5 / extended 12.5 |
Power model | GH173F | GH173F/FE | GH186FA/FAE | GH192F/FE | GH178F/FE | GH186FA/FAE |
Start mode | F recoil start | F recoil start / FE electric start | FA recoil start / FAE electric start | F recoil start / FE electric start | F recoil start / FE electric start | FA recoil start / FAE electric start |
Power category | Single-cylinder, four-stroke, air-cooled, vertical | - | - | - | - | - |
Cylinder bore and stroke | 73*59 | 73*59 | 86*72 | 92*75 | 78*62 | 86*72 |
Displacement | 0.247 | 0.247 | 0.418 | 0.499 | 0.296 | 0.418 |
Compression ratio | 20:1 | 20:1 | 19.5:1 | 19.5:1 | 20:1 | 19.5:1 |
Speed | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
Engine power | 3.6 | 3.6 | 6.6 | 8.2 | 4.0 | 6.6 |
Oil capacity | 0.75 | 0.75 | 1.65 | 1.65 | 1.10 | 1.65 |
Fuel grade | Diesel: No. 0 (summer), No. -10 (winter) | - | - | - | - | - |
Oil grade | SAE10W30 (CD grade or above) | - | - | - | - | - |
Overall dimension | 490*410*520 | 490*410*550 | 650*470*600 | 785*580*800 | 560*455*550 | 645*470*600 |
Net weight | 28 | 49 | 69 | 132 | 47 | 67 |
