Jialing Garden Machinery
Jialing garden machinery is manufactured by China Jialing Industry Co., Ltd. (Group) and covers four sub-categories: brush cutters, chainsaws, hedge trimmers and lawn mowers. Jialing is a state-owned enterprise under China South Industries Group, with a national technology center, post-doctoral research station, 5 domestic production bases, 4 overseas subsidiaries and an annual output of 1 million engines and power products, certified to ISO9001/ISO14001/CCC. The 4 brush cutters (TB35-KZ/RZ, JHB242K-K/R-K) use GX35 and 42cc two-stroke power in straight-shaft, shoulder-mount and backpack configurations. The 3 chainsaws (JLC25618/25620/22512-Z) range from 25–56cc, with 18"/20" professional models running OREGON chain. The 2 hedge trimmers (JHH223D/S-K) are 22.5cc units with 830mm single- or double-sided blades. The 7 lawn mowers (JHDM/TCM/JLM series) offer 18"–21" cutting widths powered by GXV160, GCV145/170/200 engines in push and self-propelled configurations. The full line is suited to landscape maintenance, municipal greening, property care, orchard and tea plantation management, forestry pruning and residential lawn care, offering reliable power and strong parts commonality for professional landscape contractors and greening teams.
Main Technical Features
- 16 models across 4 sub-categories: 4 brush cutters, 3 chainsaws, 2 hedge trimmers, 7 lawn mowers
- Brush cutters in straight-shaft / shoulder / backpack types, 35.8–42cc
- 18"/20" professional chainsaws with OREGON chain
- Hedge trimmers with 830mm blades, single- or double-sided
- Lawn mowers with 18"–21" cutting widths in push and self-propelled types
- Jialing military-grade quality, ISO 9001 / ISO 14001 / CCC certified
Technical Parameters
Brush Cutter

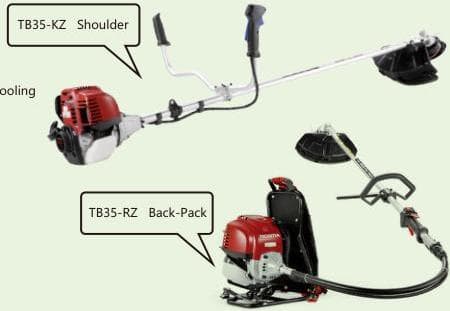

| Model | TB35-KZ | TB35-RZ | JHB242K-K | JHB242R-K |
|---|---|---|---|---|
Engine | GX35 | GX35 | 2-stroke | 2-stroke |
Displacement (ml) | 35.8 | 35.8 | 42 | 42 |
Power (kW) | 0.95@7000rpm | 0.95@7000rpm | — | — |
Blade (mm) | 255/300 | 255/300 | — | — |
Weight (kg) | 7.2 | 7.2 | — | — |
Type | Straight shaft | Straight shaft | Shoulder-mounted | Backpack |
Chainsaw
| Model | JLC25618-Z | JLC25620-Z | JLC22512-Z |
|---|---|---|---|
Displacement (ml) | 56 | 56 | 25 |
Power (kW) | 2.4 | 2.4 | — |
Bar | 18" | 20" | 12" |
Chain | OREGON | OREGON | — |
Hedge Trimmer
| Model | JHH223D-K | JHH223S-K |
|---|---|---|
Displacement (ml) | 22.5 | 22.5 |
Power (kW) | 0.65 | 0.65 |
Blade (mm) | 830 | 830 |
Weight (kg) | 5.4 | 5.4 |
Type | Single blade | Double blade |
Lawn Mower
| Model | JHDM46P | JHDM53P | TCM46SC | TCM51SC | TCM53SC | JLM18P2-D | JLM20P1-D |
|---|---|---|---|---|---|---|---|

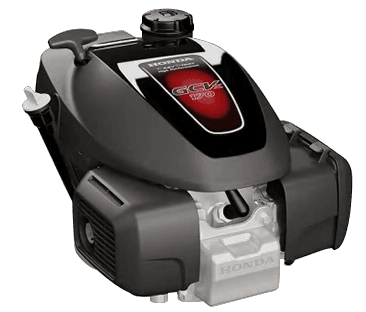

Engine | GXV160 | GXV160 | GCV145 | GCV170 | GCV200 | — | — |
Displacement (ml) | 163 | 163 | 145 | 166 | 201 | 196 | 196 |
Cutting Width (mm) | 460 (18") | 530 (21") | 460 (18") | 508 (20") | 530 (21") | 460 (18") | 508 (20") |
Weight (kg) | 30 | 41.5 | 30 | 33 | 35 | 28 | 41 |
Type | Push type | Push type | Self-propelled | Self-propelled | Self-propelled | Push type | Push type |
Garden and landscape power tools for professional landscape contractors, municipal greening teams, property maintenance, orchard and tea plantations, forestry pruning and residential lawn care. Brush cutters for grass and brush clearing, chainsaws for felling and pruning, hedge trimmers for shrub shaping, and push/self-propelled lawn mowers for turf maintenance.
