Generators

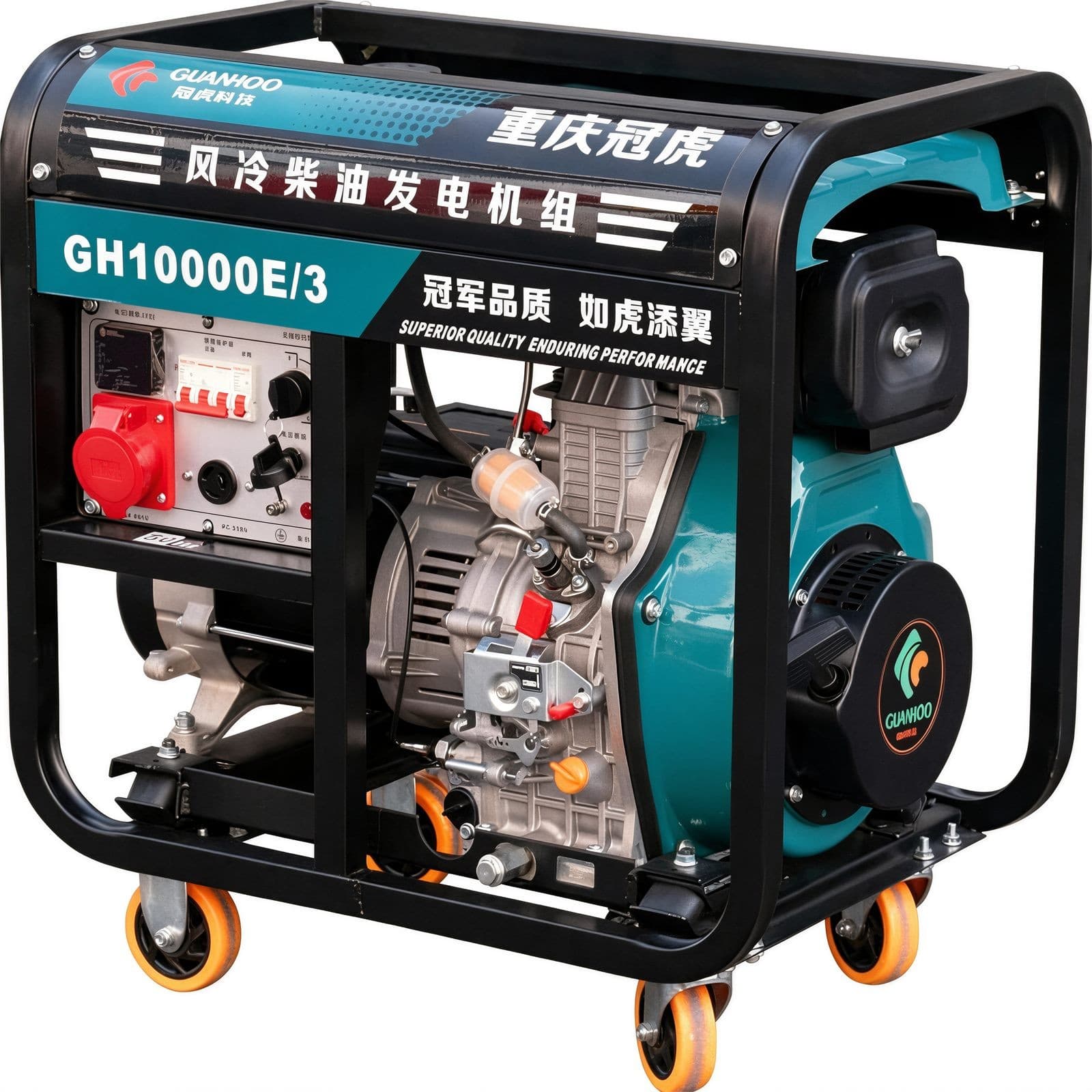

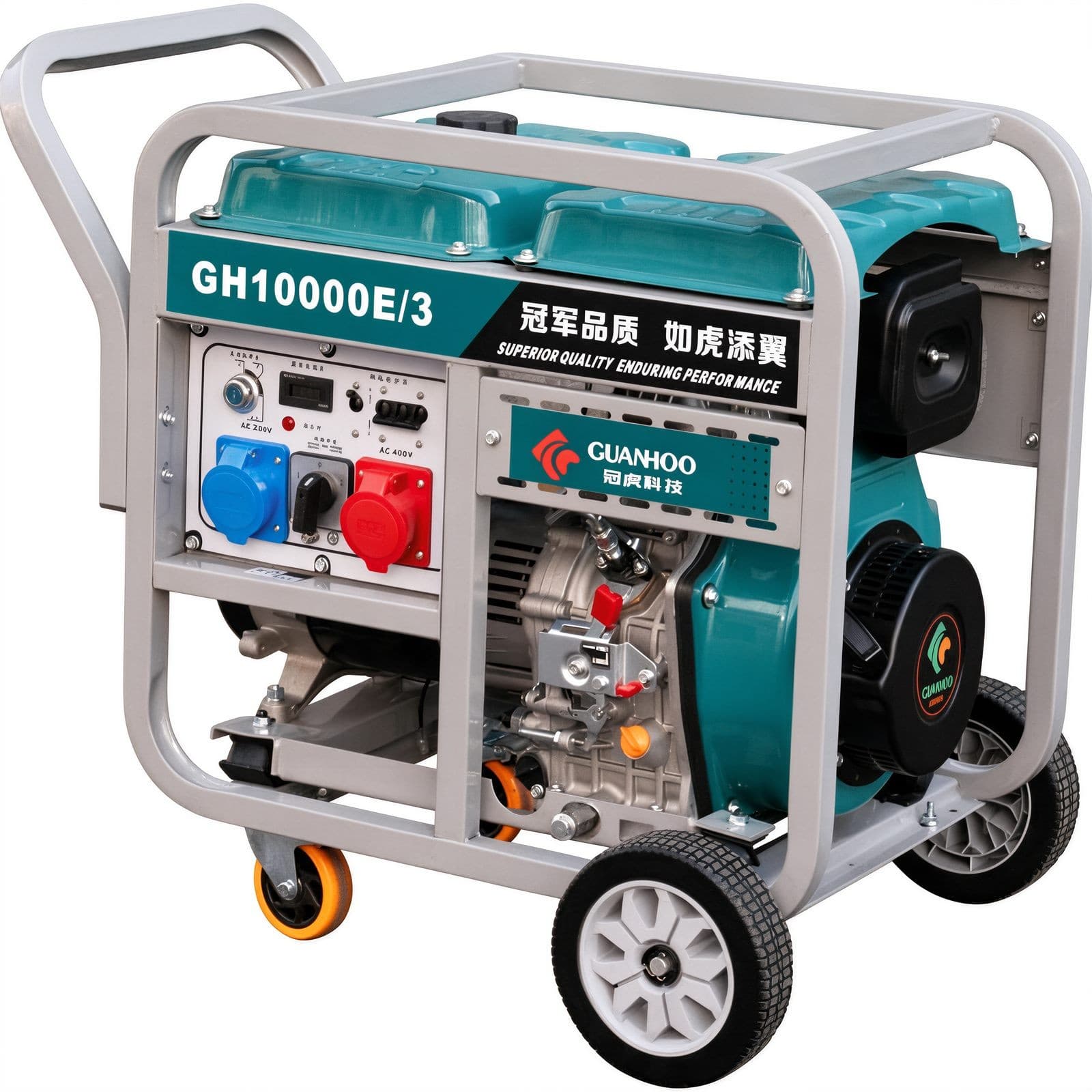

Single-Cylinder Open-Frame Diesel Generator
Single-cylinder open-frame diesel generator powered by a rugged single-cylinder diesel engine. Simple structure, excellent cooling and easy maintenance. Widely used on construction sites, farms, small factories and field operations.
Main Technical Features
- High-efficiency pure-copper alternator with 4th-generation AVR for stable output and high power quality.
- Automatic low-oil shutdown effectively protects the engine.
- Standard overload and over-current protection safeguard the generator.
- First-tier brand electrical components for consistent, reliable performance.
- Efficient pure copper wire motor, 4th generation voltage automatic regulator AVR, stable output and good power quality.
- Automatically shut down when lacking oil, effectively protecting the engine.
- Standard overload and overcurrent protection to protect the generator from harm.
- First tier brand electrical components with stable quality and reliable performance.
Technical Parameters
| Model | GH6800E | GH7800E | GH8800E | GH12000E | GH13000E |
|---|---|---|---|---|---|
Frequency | 50/60 | 50/60 | 50/60 | 50 | 50 |
Rated power | 4.5/5.0 | 5.0/5.5 | 6.5/7.0 | 8.5 | 9.0/9.5 |
Maximum power | 5.0/5.5 | 5.5/6.0 | 7.0/7.5 | 9 | 10 |
Start mode | Recoil pull start / electric start | - | - | - | Electric start |
Voltage | - | 230 | 400 | 230/400 | - |
Engine type | Single-cylinder, four-stroke, forced air cooling, vertical | - | - | - | - |
Engine model | GH186F(E) | GH188F(E) | GH192F(E) | GH195F(E) | GH1100F(E) |
Displacement | 418 | 438 | 498 | 528 | 668 |
Tank capacity | 16 | 16 | 16 | 16 | 25 |
Net/Gross weight | 92/95 | 92/95 | 92/98 | 98/110 | 142/155 |
