Generators

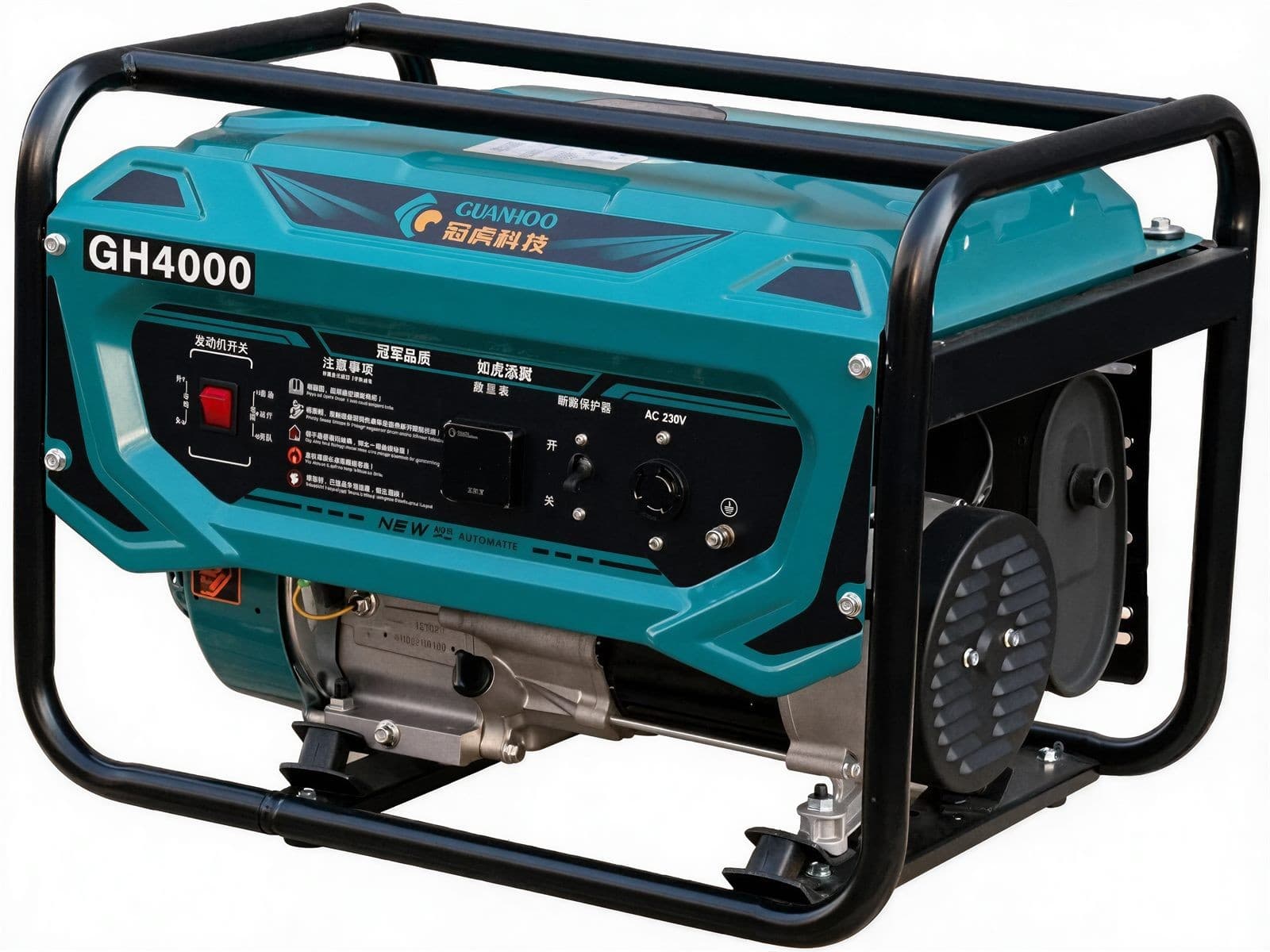

Gasoline Generator Set
Gasoline generator set powered by a general-purpose gasoline engine. Compact, lightweight, easy to start and cost-effective — ideal for home backup, camping, small construction works and mobile vending.
Main Technical Features
- All-new panel design with digital display for clear monitoring of operating parameters.
- Low-oil protection system shuts down the engine automatically when oil is insufficient.
- Pure-copper alternator offers excellent conductivity, high efficiency and long service life.
- First-tier brand electrical components for stable, reliable performance.
- Large-capacity fuel tank for extended continuous operation.
- Electric start with one-touch ignition, more convenient than traditional key start.
- New panel design with digital display table.
- Lack of oil protection system.
- Pure copper motor.
- First tier brand electrical components.
- Large capacity fuel tank configuration.
- The electric start adopts a brand new one-key start, which is more convenient and fast than traditional key start.
Technical Parameters
| Model | GH4000 | GH7000 | GH8000 | GH9000 |
|---|---|---|---|---|
Frequency | 50 | 50 | 50 | 50 |
Rated power | 2.8 | 5 | 6.5 | 7.5 |
Maximum power | 3.2 | 5.5 | 7 | 8 |
Start mode | Recoil pull start / electric start | - | - | - |
Rated voltage | 220 | 220/380 | - | - |
Phase number | Single-phase | Single-phase / three-phase / equal power | - | - |
Voltage Regulation mode | Automatic voltage regulation (AVR) | - | - | - |
Engine type | Single-cylinder, four-stroke, forced air cooling, OHV | - | - | - |
Engine model | 170F/P | 190F/P | 190F/P | 192F/P |
Displacement | 212 | 420 | - | 440 |
Tank capacity | 15 | 25 | 25 | 25 |
Oil volume | 0.6 | 1.1 | 1.1 | 1.1 |
Net/Gross weight | 40/43 | 70/75 | 75/80 | 80/85 |
