Generators

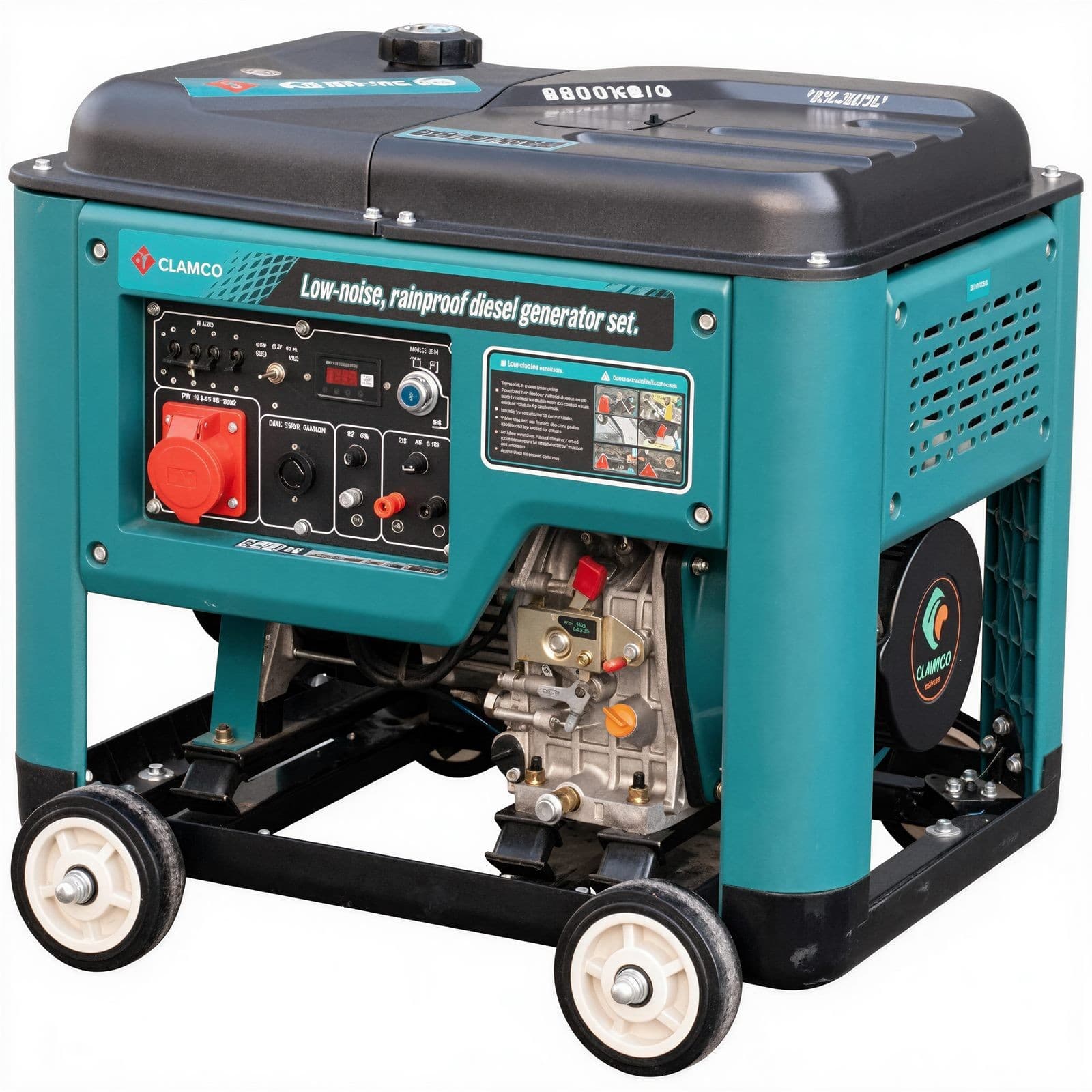

Patented Low-Noise Diesel Generator Set
Patented low-noise diesel generator set with enclosed sound-attenuated canopy and multi-stage vibration isolation. Suitable for noise-sensitive environments such as residential complexes, hotels, hospitals and shopping malls, delivering reliable standby and prime power.
Main Technical Features
- Innovative design using high-strength nylon shell and fuel tank — lightweight, rainproof and noise-reducing.
- Low fuel consumption, low emissions and good safety performance, suitable for a wide range of working conditions.
- Equipped with a large-capacity nylon fuel tank offering over 12 hours of running time, with low-oil-pressure protection.
- Innovative design, using high-strength nylon shell and oil tank, lightweight, rainproof, and noise proof.
- Low fuel consumption, low emissions, good safety performance, suitable for use under various working conditions.
- Equipped with a large capacity nylon fuel tank with a range of more than 12 hours, equipped with low-pressure protection technology, and automatically shut down when the engine oil is insufficient.
- The panel adopts a digital voltmeter, with optional leakage protection and hydraulic short circuit breaker to prevent leakage and overload of the generator set.
Technical Parameters
| Model | GH4800XE XE-3.XE/3 | GH6800XE XE-3.XE/3 | GH7800XE XE-3.XE/3 | GH8800XE XE-3.XE/3 | GH9800XE XE-3.XE/3 | GH11000XE XE-3.XE/3 |
|---|---|---|---|---|---|---|
Rated frequency | 50 | 50 | 50 | 50 | 50 | 50 |
Rated voltage | 220 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
Maximum power | 3.3 | Single-phase 5.0 / three-phase 5.25 | Single-phase 5.5 / three-phase 6.9 | Single-phase 6.5 / three-phase 8.1 | Single-phase 7.5 / three-phase 9.3 | Single-phase 8.5 / three-phase 10.5 |
Rated power | 3.0 | Single-phase 4.5 / three-phase 5.62 | Single-phase 5.0 / three-phase 6.25 | Single-phase 6.0 / three-phase 7.5 | Single-phase 6.6 / three-phase 8.3 | Single-phase 8.0 / three-phase 10.0 |
Phase number | Single-phase | Single-phase, three-phase, equal power | - | - | - | - |
Size | 670*470*560 | 790*560*690 | - | - | - | - |
Net weight | 75 | 115 | 117 | 120 | 122 | 145 |
Tank capacity | 12.5 | 19 | - | - | - | - |
Noise | 95 | 88 | - | - | - | - |
Engine model | 178FE | 186FAE | 188FE | 192FE | 195FE | 1100FE |
Type | Inline, single-cylinder, air-cooled, four-stroke | - | - | - | - | - |
Cylinder diameter | 78 | 86 | 88 | 92 | 95 | 100 |
Piston stroke | 62 | 72 | 75 | 75 | 75 | 85 |
Displacement | 296 | 418 | 456 | 498 | 532 | 667 |
Fuel consumption rate | ≤276 | ≤275 | ≤275 | ≤277 | ≤285 | ≤260 |
Rated speed | 3000 | - | - | - | - | - |
Starting system | 12V starter motor | - | - | - | - | - |
Motor insulation grade | H | - | - | - | - | - |
Duration | 12 | - | - | - | - | - |
Fuel type | Diesel: No. 0 (summer), No. -10 (winter) | - | - | - | - | - |
Oil grade | SAE10W30 (CD grade or above) | - | - | - | - | - |
Optional configuration | ATS / remote control / digital control panel / wheels and handle kit | - | - | - | - | - |
