Buses & Coaches

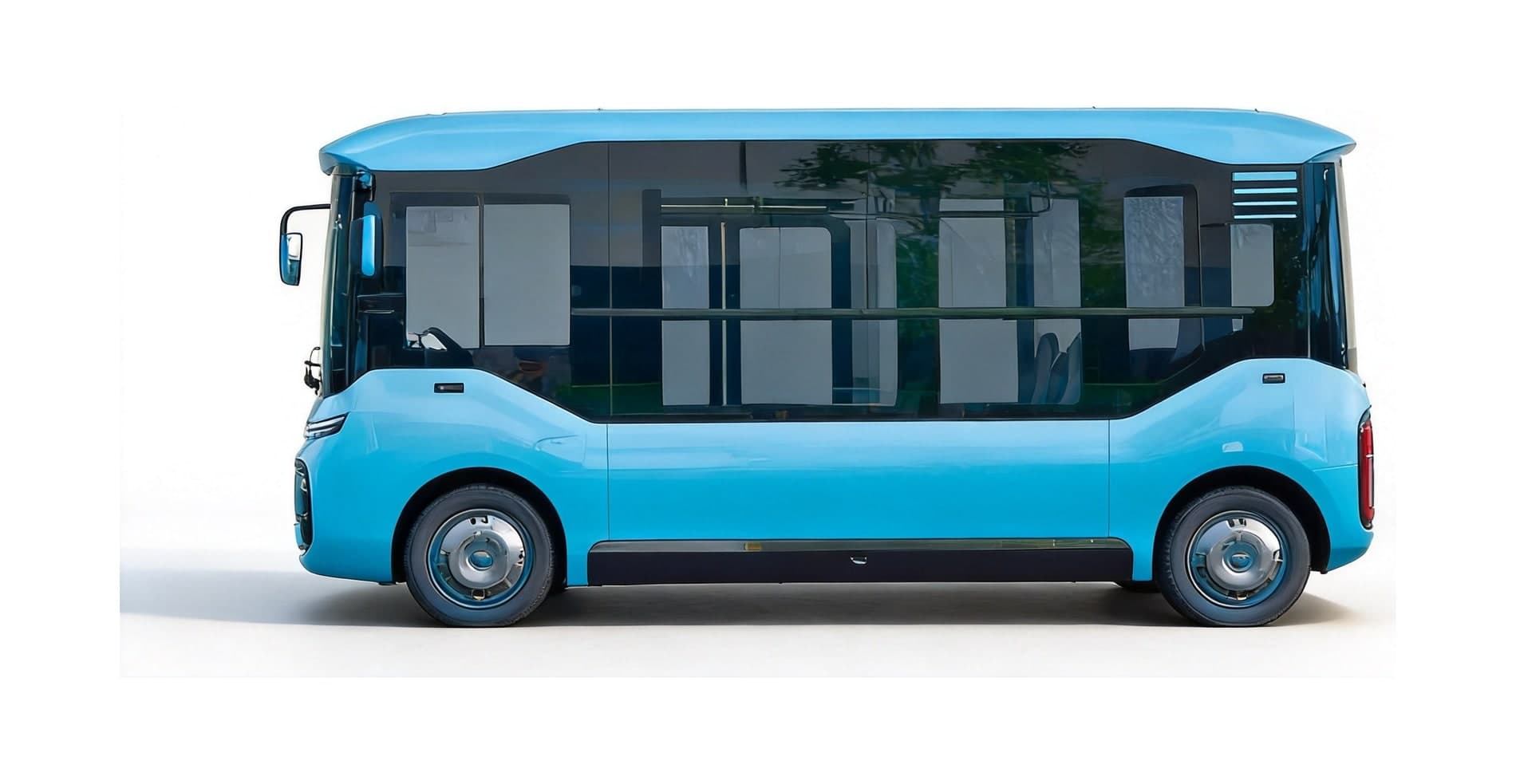

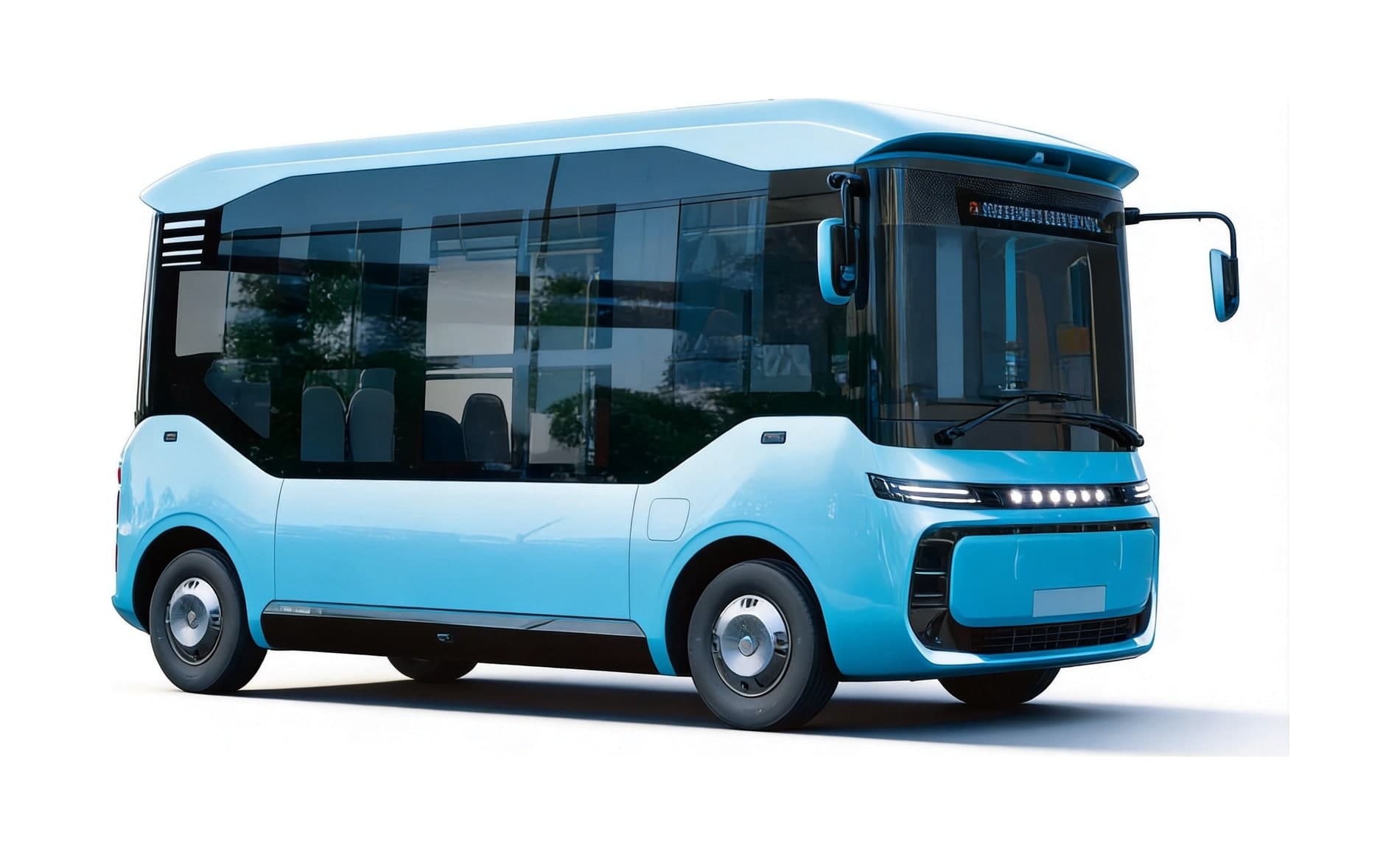

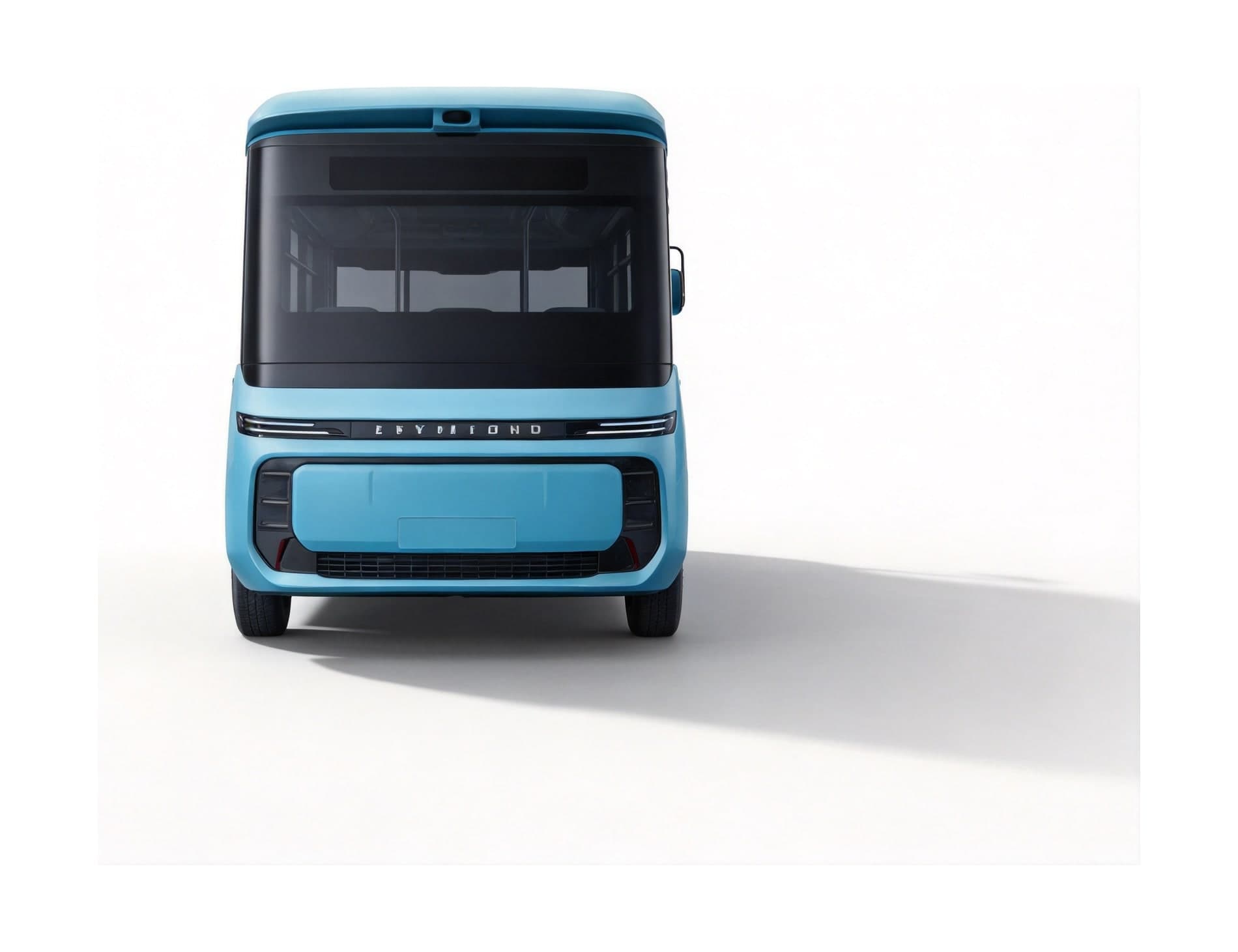

Skyworth Urban Elf Electric Minibus
The Skyworth Urban Elf is a 5.4m all-electric low-entry minibus with a rounded body, a large panoramic windshield and LED daytime running lights. Its permanent-magnet synchronous motor delivers up to 180kW and 300N·m, while the LFP battery offers a range of up to 490km with both fast and slow charging. The single-step low-entry layout makes boarding easy, ideal for community shuttle, custom feeder and short-route passenger service.
Main Technical Features
- 5.4m minibus with single-step low entry for easy boarding
- PMSM motor: up to 180kW peak power and 300N·m peak torque
- LFP battery with up to 490km range, fast & slow charging
- Panoramic windshield and LED daytime running lights
- Foldable flip-over seats for flexible layout
Technical Parameters
| Model | Urban Elf |
|---|---|
Overall L×W×H | 5445×2085×2655 |
Wheelbase | 3300 |
Front/rear track | 1720 / 1570 |
Front/rear overhang | 1145 / 1000 |
GVW | 5400 |
Curb weight | 3560 |
Rated passengers | 19（含司机，座椅13+折叠6）/ 19 incl. driver, 13 seats + 6 foldable |
Approach/departure angle | 14 / 15 |
Max speed | 100 |
Motor type | 永磁同步 / PMSM |
Rated/peak power | 60 / 180 |
Rated/peak torque | 140 / 300 |
Battery type | 磷酸steel锂 / LFP |
Range | 402 / 490 |
Charging | 快充 + 慢充 / Fast + slow (DC+AC) |
Suspension | frontIndependent suspension / rear钢板弹簧 / Front independent, rear leaf spring |
Brakes | front盘reardrum、液压制动、ABS / Front disc, rear drum, hydraulic, ABS |
Door/entry | 单外摆门、一grade踏步低入口 / Single swing door, one-step low entry |
