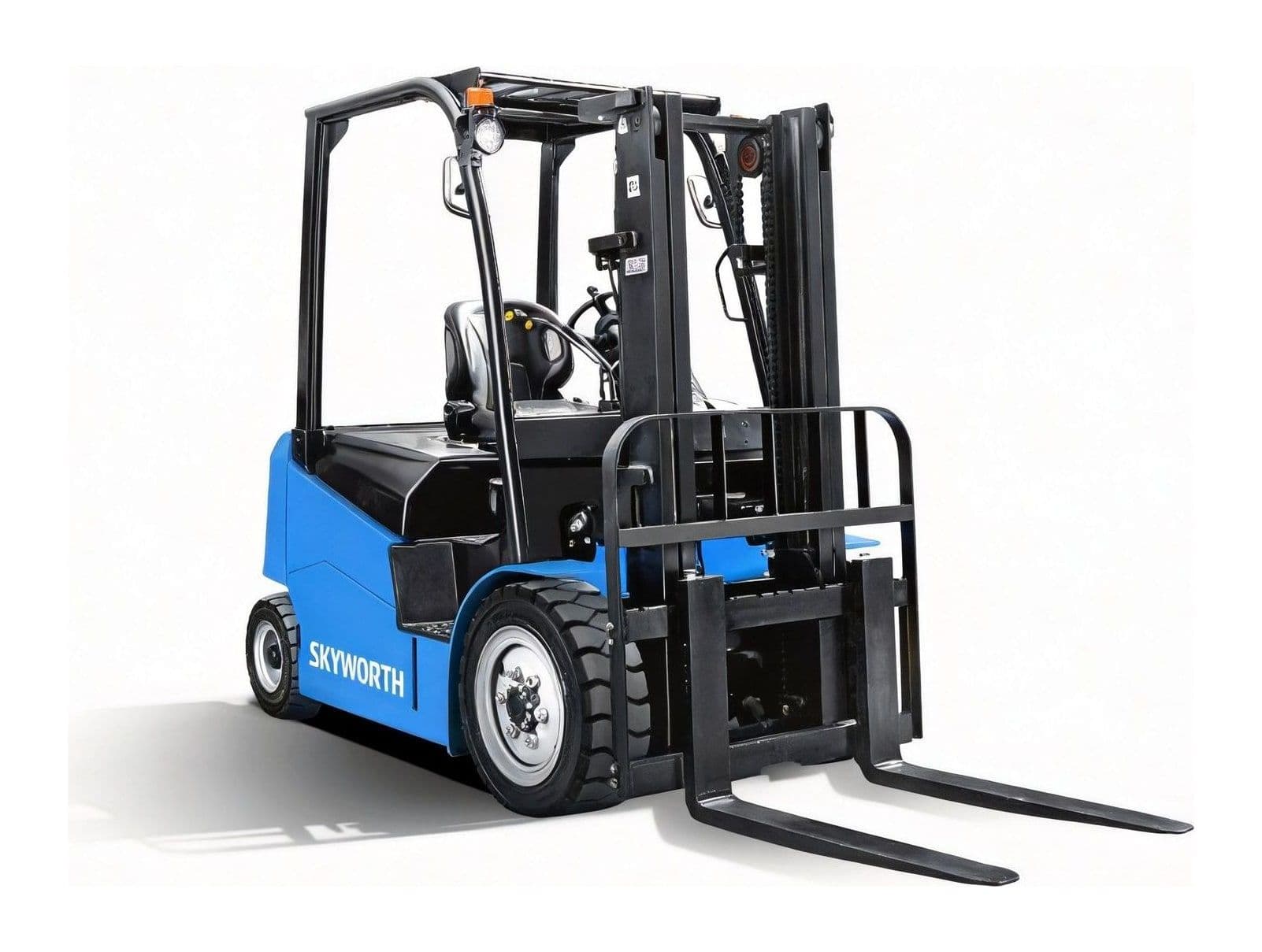

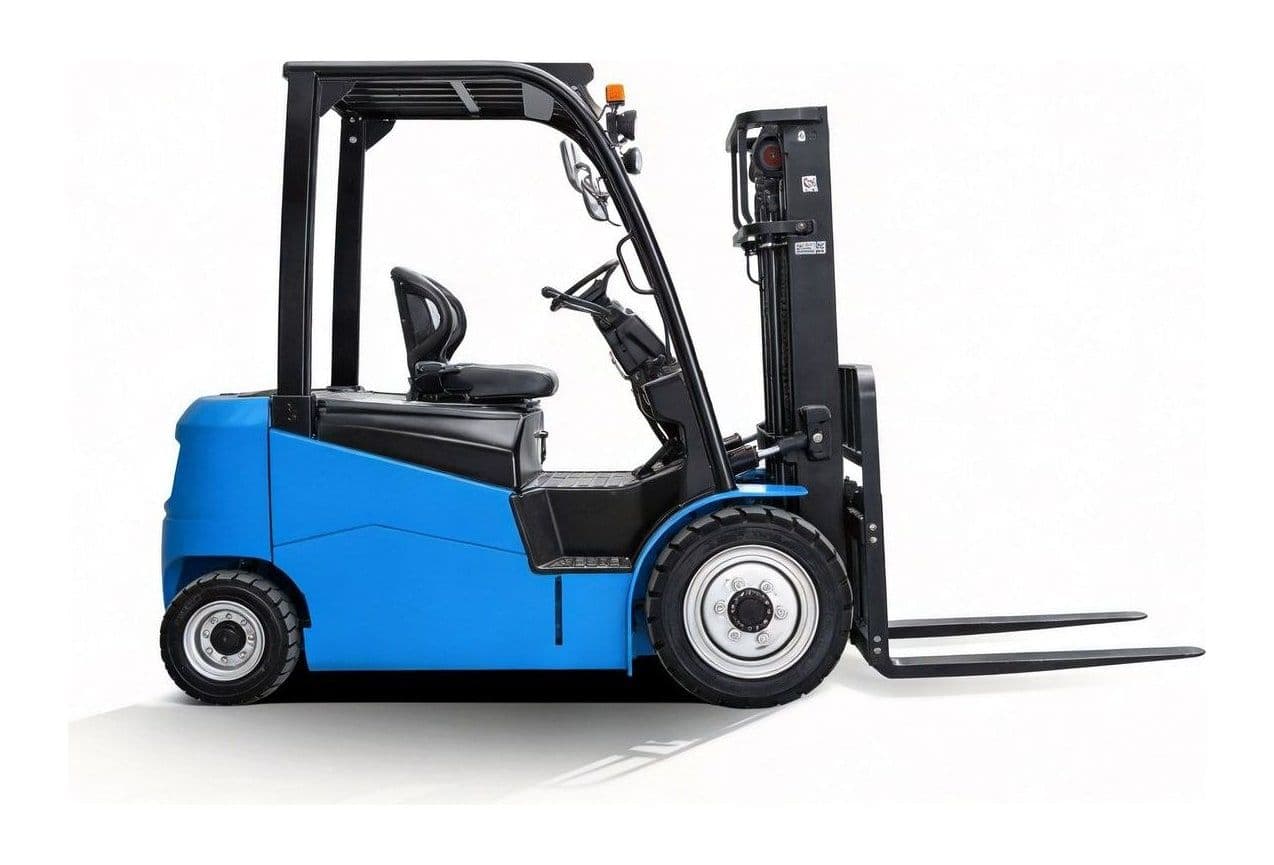

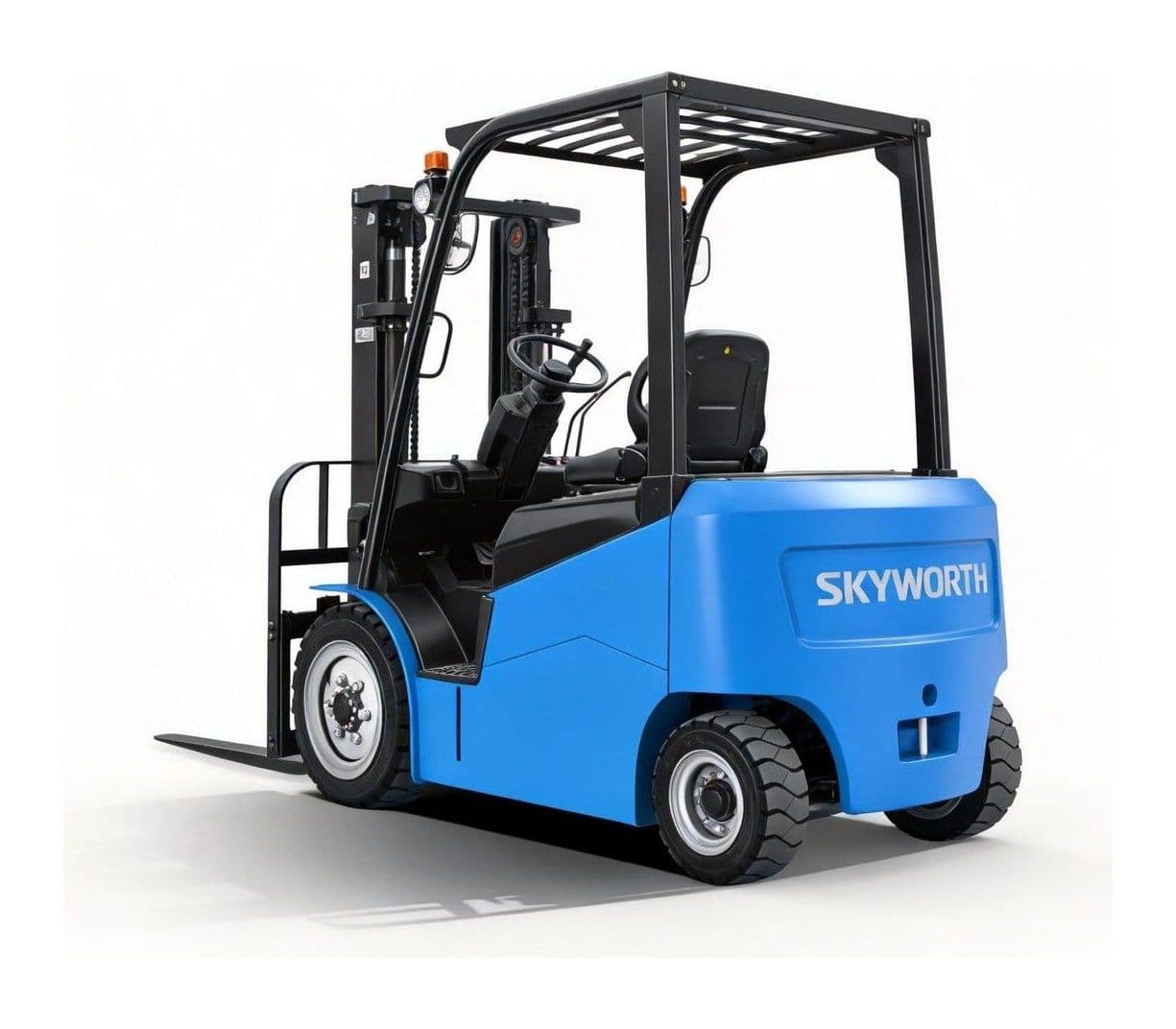

Skyworth CPD35 3.5T Electric Counterbalance Forklift
The Skyworth CPD35 (B Series) is a 3.5-ton rated lithium-ion counterbalance forklift with a blue-and-black body and a reinforced counterweight structure. Its intelligent electric drive and high-performance lithium battery support fast charging, long cycle life and maintenance-free operation. Zero-emission and low-noise, it is built for heavy handling and multi-shift work in factories, logistics hubs, ports and large warehouses.
Main Technical Features
- 3500kg rated capacity, 500mm load centre
- High-performance lithium battery, fast charging, long life, maintenance-free
- Reinforced counterbalance structure for heavy-load stability
- Smooth, sustained electric torque with zero emissions and low noise
- Lift heights 3000/4500/6000mm; mast and forks customizable
- Ergonomic operator area for multi-shift factory, warehouse and port work
Technical Parameters
| Model | CPD35-LB |
|---|---|
Model | CPD35-LB |
Drive type | 电动 / Electric |
Power type | lithium battery / Lithium battery |
Rated capacity | 3500 |
Load centre distance | 500 |
Front overhang | 485 |
Wheelbase | 1760 |
Service weight (incl. battery) | 4450 |
Axle load, laden (front/rear) | 7000 / 950 |
Axle load, unladen (front/rear) | 2000 / 2450 |
Optional lift heights | 3000 / 4500 / 6000 |
Optional fork lengths | 1220 / 1520 / 1820 |
Mast type | 标准/集装箱门架optional / Standard or container mast |
Applications
Heavy-duty electric material handling in manufacturing plants, logistics hubs, ports and large warehouses, indoor and outdoor.
